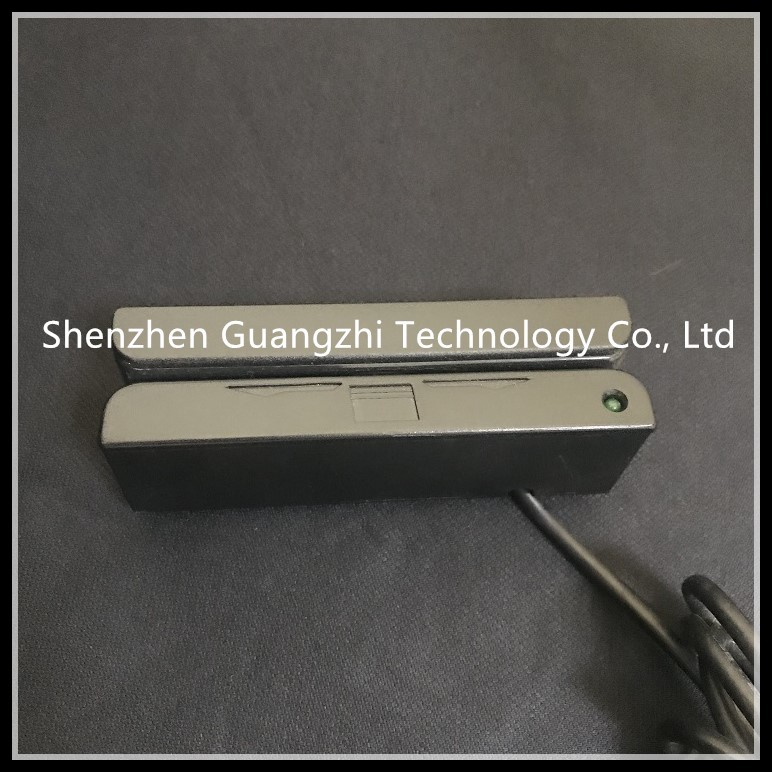

Mini Manual Swipe Magnetic Stripe Card Reader Apply For Cash Register Restaurant

Product Name:Card Reader

Model: GZ-K002033

Product specification: 90 * 26*28 mm

Product introduction:
Manual reading terminal of magnetic stripe is a kind of special equipment for reading magnetic stripe information with high reliability, which is used in banking system, commercial POS system, attendance and access control system, member management system and other commercial fields. It has dual prompt of light and sound, low power consumption, beautiful appearance, strong compatibility, and can automatically identify magnetic cards of different densities and standards. It is suitable for various system environments, and can be equipped with various microcomputers, terminals, POS machines, etc It can read multiple tracks (tracks 1-3) at the same time. It is very simple and convenient for the product to be connected in PC system environment without external power supply. It can be powered directly from USB.

Product specification parameter product name: magnetic card swipe card device
Manufacturer: Shenzhen Guangzhi
Communication port: USB interface
PCB board: FR-4 (two layers)
Main chips: m3-2100, jbf8x728
Head model: SR13
Shell material: Black ABS material, 90 * 28.38 * 28.3mm
Wire length: 120mm ± 20mm
Wire model: ul2725
Wire specification: 28Awg * 1p + 28Awg * 2C
Interface: Standard USB2.0 Interface
Working power supply voltage: DC 5V ± 5% (powered by USB interface)
Working current: ≤ 100mA
MTBF: > 100000 hours
Magnetic card reading standard: 3-Rail two-way card reading conforming to iso-7811 / 2
Decoding mode: F2F (FM)
Card drawing speed: 20cm-120cm / S
Buzzer loudness: ≥ 60dB
Working temperature: 1 ℃ – 70 ℃
Storage temperature: - 40 ℃ - 90 ℃
Relative humidity: 10% - 90% RH, no condensation
