Industrial Rfid Card Reader Usb Interface , Writable Contactless Rfid Reader

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-K001033C
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T,Paypal
Supply Ability: 100000pcs
Detail Information
Type Of Readable Card: TK4100、EM4100、EM4001 Type: USB
Material: Abs Weight: 121g
Working Temperature: -20°c ~ 60 °c Size: 120*78*25mm
High Light:

pos card reader

,

contactless rfid reader


Product Description

Line length
2m

interface
USB or RS232/
Card reading time
1m



Product Name: Contactless reader
Product model: K001033C
Product size: 120*78*25mm
Product Description: K001033C is a non-connected IC card reader, which can read and write electronic tags, separate RF cards, and connect with PC and related devices through RS232 serial interface or USB port. USB adopts no drive technology. It is convenient for users to install and use. Its multi-card support can be used for security card issuing and those with high security requirements. Driver development kits for various platforms are provided at random, and the accompanying demo program provides full access to the RF card with automatic card testing.
       K001033C IC card reader is a must-have front-end processing device for developing IC card related products and system integration. Its rich and complete interface function can be conveniently applied to business, telecommunications, postal, tax, banking, insurance, medical, Conference card sign-in, Internet cafe management, gas station, parking lot and other smart card management application systems such as charging, stored value and inquiry.

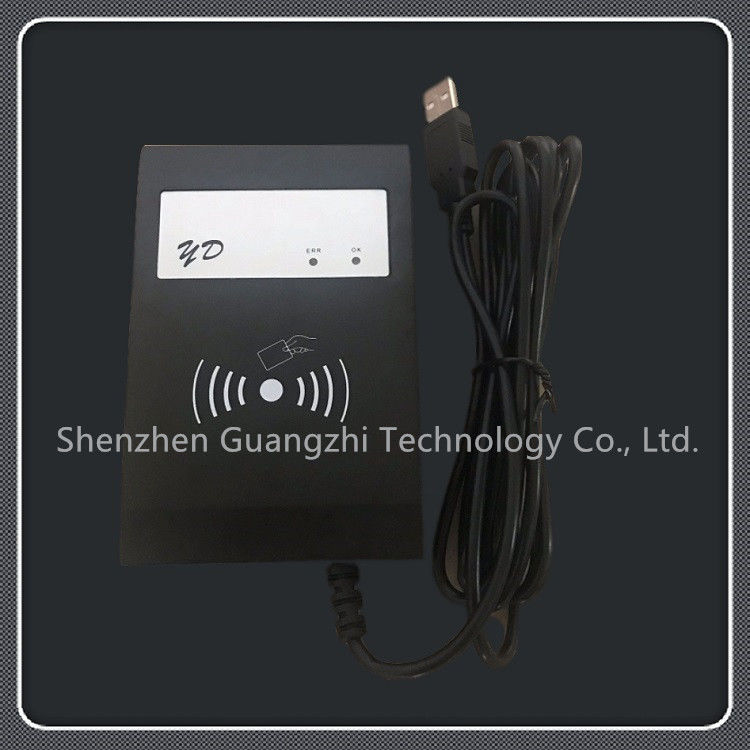

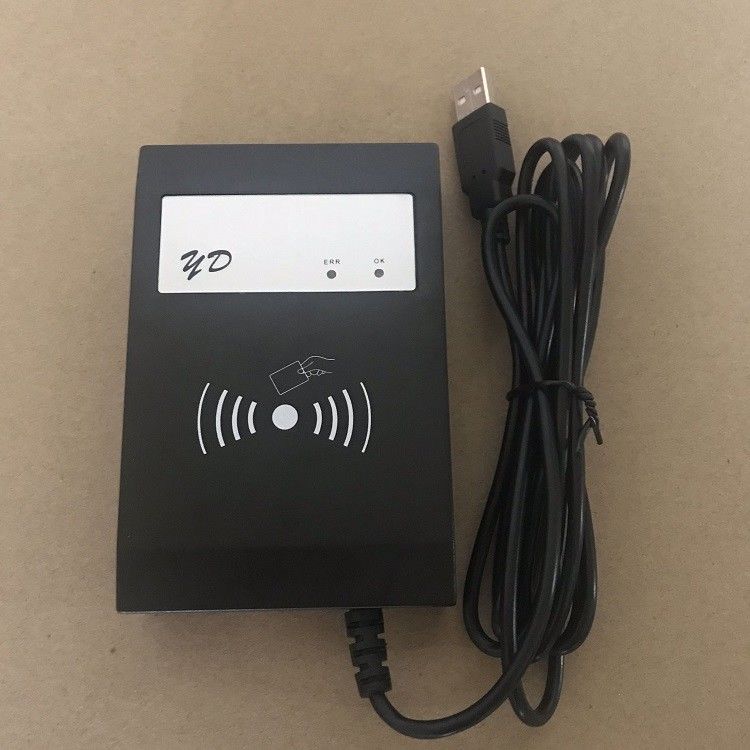

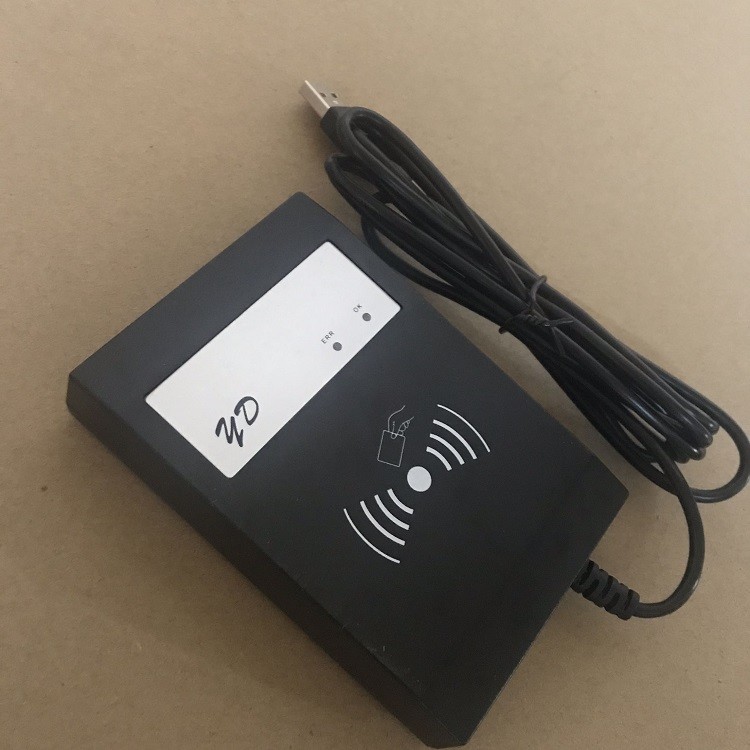

Product front renderings:

Industrial Rfid Card Reader Usb Interface , Writable Contactless Rfid Reader 0



Industrial Rfid Card Reader Usb Interface , Writable Contactless Rfid Reader 1



Installation Notes:
1. After the card reader is connected to the computer, the card reader enters the self-test and initialization from the "drop" sound, and the card reader has entered the state of waiting for the card to be swiped, and the indicator light is "red" at this moment. Open the computer's output software (such as: Notepad WORDEXCEL and other editors), put the card close to the card reader, the red light flashes green and then turns red, and the buzzer sounds to send data, that is, automatically The card number is displayed at the cursor of the computer.
2. Detecting the method of reading the card to connect to the computer
The card reader enters the swipe state, open the computer “Device Manager”, check whether the ergonomic input device appears in the option menu. If it appears, it indicates that the device has successfully connected to the computer.



Product parameters:
Support card: TK4100, EM4100, EM4001
Operating system: Windows 98, Me, 2K, XP, 2003, WIN7 and Unix and Linux
Communication protocol: Support ISO14443 Type A/B/Support ISO15693/Support CPU card with T=0, T=1
Standards to be followed: ISO14443, ISO 7816, ISO15693, PC/SC, GSM11.11, FCC, CE
Card reading distance: 0~80MM
Card reading time: <100MS
Communication speed: T=0:9600-38400bps T=1:9600-115200bps
Card reading distance: 0.5S
Communication interface: USB or R232
Power-off mode: USB power
Working environment: temperature (-20 ° C ~ 85 ° C) humidity (5% ~ 95%)
Working voltage: 5V
Weight: 160G
Working current: 100mA
Indicator light: LED indicator
Built-in speaker: buzzer, control LED and buzzer
Wire length: 2m

Other features:
Provides a common interface function library that supports multiple operating systems and language development platforms
Synchronous support for ISO14443 Type A, Type B contactless smart cards, such as: Mifare S50, Mifare S70, MF1ICL10, Mifare Pro, Mifare desfire, Mifare ultralight, SLE44R31, SLE6-6cl series, AT88RF020, Hua Hong 1102, SHC1108 card, Fudan FM1208, etc.
Synchronous support for ISO15693-compliant electronic tags such as: I-Code2, Tagit, My-d, LRI512
