Corrosion Proof Keyboard With Built In Trackball Precision Surface Treatment

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-D004023-001
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB Or PS2
Material: Stainless Steel Sphere Volume: 38mm
Certification: FCC, CE, ROHS, IP65, ISO9001 Interface: USB, PS/2 Or USB+PS/2, USB Or PS/2, PS/2
Highlight:

metal keyboard with trackball

,

pc keyboard with trackball


Product Description

Keyboard with integrated trackball, metal mouse for desktop use

Prod uct Name:Industrial trackball mouse

Product P/N:GZ-D004023-001

Product Description: Anti Riot stainless steel track ball, the ball and roller are designed with high quality and wear-resistant stainless steel materials, the mold is matched with precision and accuracy, and the surface treatment is beautiful and generous. Waterproof (can work normally in outdoor rainy days), dustproof, explosion-proof and corrosion-proof;

Environmental adaptability:
1. Operating temperature: - 10 ℃ to + 50 ℃
2. Storage temperature: - 30 ℃ to + 80 ℃
3. Relative humidity: 30-95% (no condensation)
4. Atmospheric pressure: 50-110kpa
5. Salt spray test: 96 hours, iec60512-6
6. 40 ℃ high tide humidity test: 21 days, iec60512-6
7. High drying test at 85 ℃: 10 days, iec60512-6

Electrical parameters:
1. Working voltage: DC + 5V + / - 5%
2. Working current: 10mA
3. Electromagnetic radiation: EN50081-1
4. Electromagnetic immunity: en50082-1
5. EMC standard: 89 / 336 / EEC en55022:1988 + a1:2003 en55024:1988 + A1:2001 + a2:2003
6. Expected service life: > 5 years



ITEM

SPECIFICATION

Key

3 keys, quality brushed stainless steel

Key Travel

2.0 mm

Ball diameter

38.1mm

Key switch lifespan

more than 10 Mio actuations

Track ball lifespan

> 10 Mio revolutions

Actuation Force

0.6 N to 1.2 N

Dimension

105.0mm x 134.0mm x 69.0mm (L x W x H)

Reliability:

MTBF

>20000H

MTTR

<30min

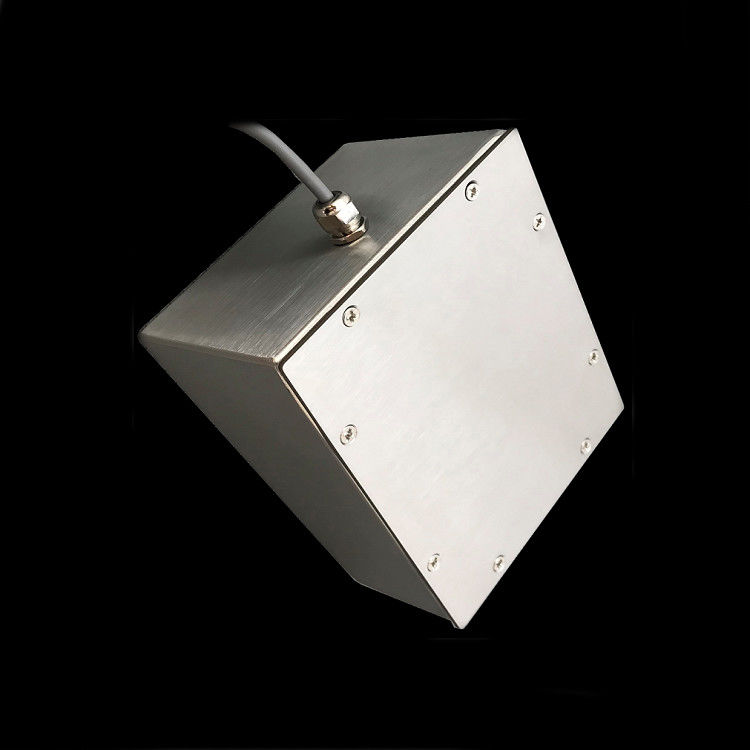

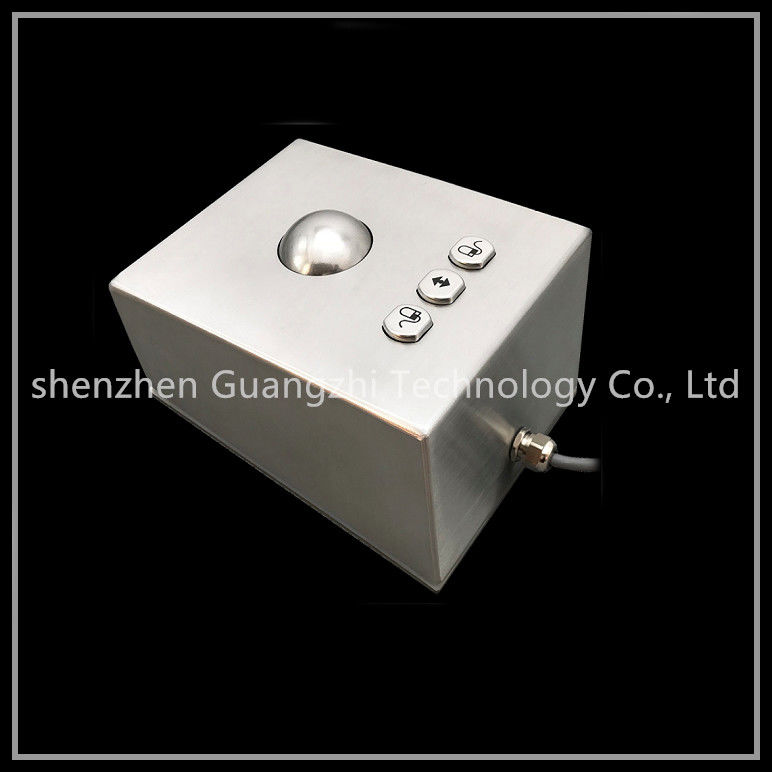

Corrosion Proof Keyboard With Built In Trackball Precision Surface Treatment 0

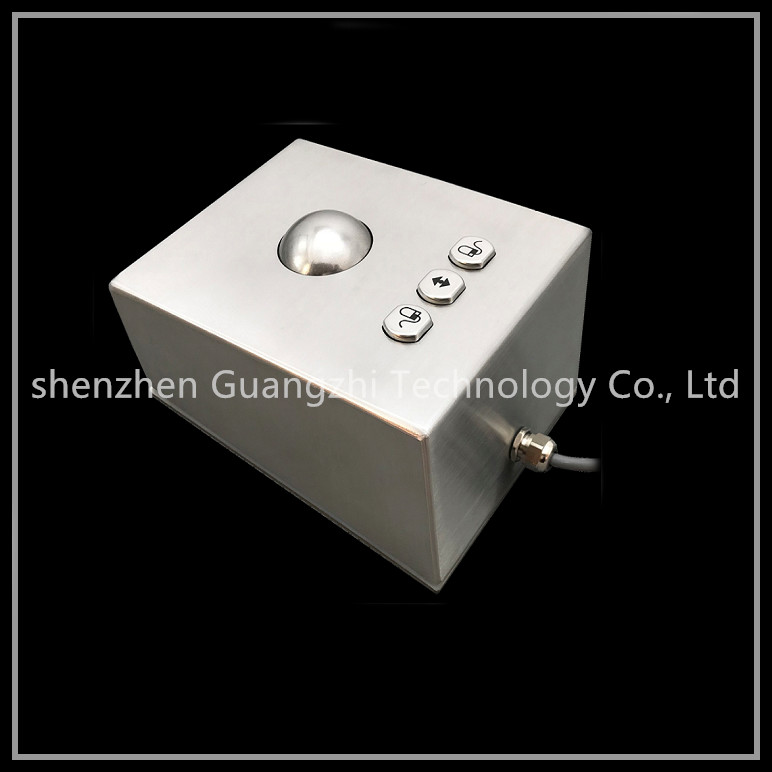

Corrosion Proof Keyboard With Built In Trackball Precision Surface Treatment 1
