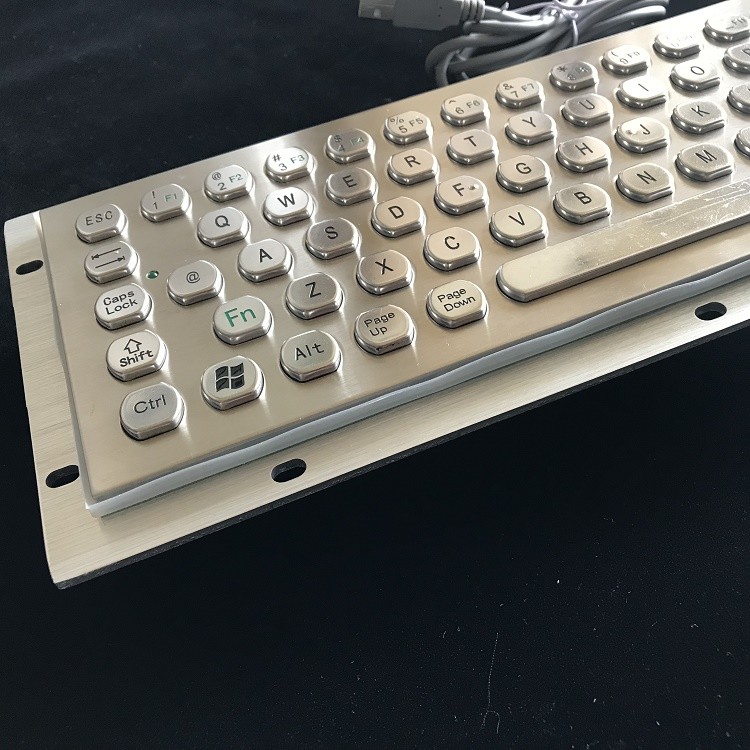

Stainless Steel Industrial Keyboard With Trackball Custom Layout Rust Proof

Basic Information
Place of Origin: SHENZHEN CHINA
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP65
Model Number: GZ-C001013-001
Minimum Order Quantity: 1PCS
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T
Supply Ability: 10000pcs
Detail Information
Warranty: 1year Connection: USB Or PS2
Material: #304 Stainless Steel Keys: 68
Certification: FCC, CE, ROHS, IP65, ISO9001
Highlight:

keyboard with built in trackball

,

pc keyboard with trackball


Product Description

Stainless steel industrial metal keyboard with trackball, English interface;

Product name:Embedded Numeric Keypad

Model: GZ-C001013-001

front panel Size:299*110mm

APPLICATION
self-service library
self-service kiosk CNC machine
household applications oiling machine charge spot
industrial telephone ATM access control
ticket machine vending machine medical facility
security system fingerprint attendance machine

Product Description: stainless steel keyboard, number keys, twenty-eight function keys and twenty-six letters, compact layout of keys, using 0.5mm long key stroke, installation method from inside to outside, the whole thickness is: 33mm, using all stainless steel panel and laser engraved key design, mold with precision and accuracy, beautiful surface treatment. Key value can be customized;

Material

Face plate: 304 stainless steel

Keys: 304 stainless steel

Back plate: SUS304

Special feature:

Full travel keys, excellent typing feel;

Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.

Built from stainless steel,resistant to vandalism,corrosive,rust

Dust-proof and liquid-proof, IP65 compliant

Physical properties

Keys stainless steel keypad, Dot matrix keypad

Carbon-on-gold key switch technology

Rear mounting/bracket mounting

USB or PS2 interface available

Custom layout available,generally English layout

Keycaps:

keycap font is black, the function keys have colored icon

etched keycaps graphic, paint by special process

keycap graphic can be customized

Environmental adaptability

Operating temprature:-25℃~+70℃

relative humidity:30%~90%RH

Storage temprature:-25℃~+70℃

relative humitity:20%~95%RH(non-condensate)

BARO:60~106Kpa

Keys :keyboard keys can be defined according to customer requirements

Key life: more than 200 million times

Key travel: 0.2mm

Key strength: 3N

Operating temperature: -40 ℃ -65 ℃

Operating system

Operating system: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Windows 7, Windows 8, Windows 9, Windows 10, Linux, Unix, Mac osx

Electrical Data

Power supply voltage: DC 5 V ± 5%

Current rating: 20 mA

Interface: USB or PS2

EMC Emission:EN55022(B)

Stainless Steel Industrial Keyboard With Trackball Custom Layout Rust Proof 0



Stainless Steel Industrial Keyboard With Trackball Custom Layout Rust Proof 1





Stainless Steel Industrial Keyboard With Trackball Custom Layout Rust Proof 2
