Name: Metal Integrated Trackball Keyboard , 89 Key Keyboard With F1-f12 Function Button
Brand: guangzhi
SKU: GZ-C002113
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (164 reviews)

Detail Information

Application:	ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc.	Connection:	USB,PS2
Material:	#304 Stainless Steel	KEYS:	89
Interface Type:	FCC, CE, ROHS, IP65, ISO9001
High Light:	keyboard with built in trackball , pc keyboard with trackball

Product Description

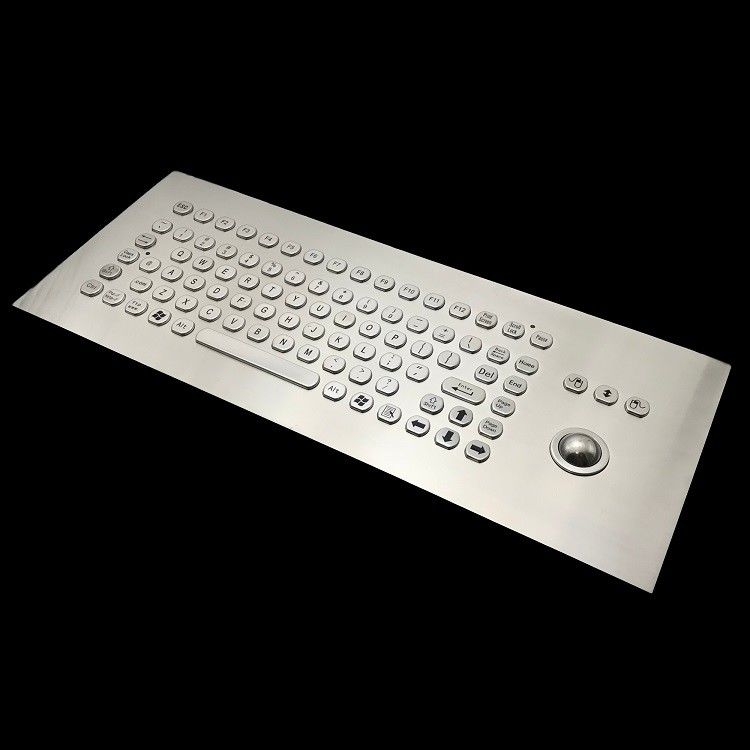

89 key with F1-F12, stainless steel with integrated trackball keyboard

Product name:industrial Keyboard With Trackball

Model: GZ-C002113

Front panel size:	434*177mm
KEYS:	89KEYS
Mouse ball size:	25 or 38 mm
Line length:	2m

weight:

1.5KG

Product description: Anti-riot stainless steel keyboard, 68 keys, Compact layout of buttons, 2.0mm long button stroke, Full stainless steel panel and button design, Precise and accurate mold matching, Beautiful surface treatment. Mainly used in various unsupervised Or information terminals in semi-regulated places, Such as Internet terminals, Universities, Shopping malls, Hotels, Banks, Airports, Stations and other public places kiosks, Ticket vending machines, Gas stations, Bank tellers (Automatic deposit / Withdrawal machines), Public Telephone, Etc.

Electrical parameters:

1. Working voltage: DC +5V +/- 5%

2. Working current: 10mA

3. Electromagnetic radiation: EN50081-1

4. Electromagnetic immunity: EN50082-1

5. Electromagnetic compatibility standards: 89/336/EEC EN55022:1988+A1:2003 EN55024:1988+A1:2001+A2:2003

6. Expected service life: >5 years

7. Button switching technology: conductive carbon particles / gold-plated PCB

8. Interface technology: PS2, USB optional

9. Operating System: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx

Mechanical parameters:

1. Button: 68 buttons, imported printed brushed SUS304 stainless steel.

2. Button strength: 1.2N +/- 0.1N (contact force)

3. Mutual capacitance sensing:

X/Y axis position detection resolution: 40counts/mm

Trackball resolution: X>200dpi; Y>190dpi (optional mechanical or photo sphere)

x/y position report: relative

Sensing range: 65*49mm

Touch tracking speed: >1.016 m / sec

Power supply voltage: 5V ± 0.25V

Rated current: 17 mA

4. Rear panel: 3.0mm thick brushed aluminum plate

5. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick

6. Weight: 2kg

Environmental adaptability:

1. Atmospheric pressure: 60-106Kpa

2. Salt spray test: 96 hours, IEC60512-6

3.40 °C high humidity test: 21 days, IEC60512-6

4. 85 ° C high drying test: 10 days, IEC60512-6

Metal Integrated Trackball Keyboard , 89 Key Keyboard With F1-f12 Function Button 0

Tag:

Place of Origin:	Shenzhen,China
Brand Name:	guangzhi
Certification:	CE、FCC、RoHS、IP65
Model Number:	GZ-C002113

Minimum Order Quantity:	1pcs
Price:	To be quoted
Packaging Details:	Individual product package size:23515050mm, Carton Size:482320275;
Delivery Time:	10-20 work days
Payment Terms:	T/T, Paypal
Supply Ability:	100000pcs
