Tamper Resistant Usb Keyboard With Touchpad Stainless Steel Material 71 Keys Type

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-C003013
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: Desktop, Ticket Vending Machine, Kiosk, Laptop, Computer Connection: USB Or PS2
Material: #304 Stainless Steel Type: Wired
Certification: CE FCC RoHS
Highlight:

usb keyboard with touchpad

,

mechanical keyboard with trackpad


Product Description

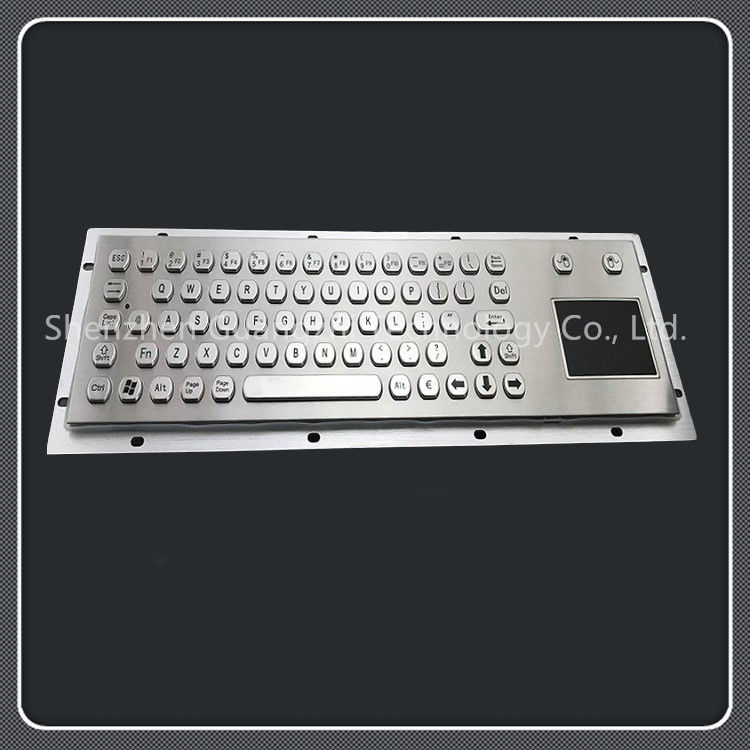

71-key tamper-resistant stainless steel touchpad mouse trackball keyboard

Product Name:PC Touchpad metal keyboard

Product P/N:GZ-C003013

Product Size:392*110mm

Product Description:71 keys vandal proof stainless steel keyboard with ruggedized touchpad, with carbon-on-gold key switch technology for fast and accurate data input, back panel mounting. Anti-scratch and durable electroplated titanium black panel is available.

Installation:1)CAD:

Tamper Resistant Usb Keyboard With Touchpad Stainless Steel Material 71 Keys Type 0

Product map:

Tamper Resistant Usb Keyboard With Touchpad Stainless Steel Material 71 Keys Type 1



Tamper Resistant Usb Keyboard With Touchpad Stainless Steel Material 71 Keys Type 2





MAIN FEATURE:

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

2. Waterproof execution according to degree of protection IP65(Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

3. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

4. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

5. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

6. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

7. Anti-scratch and durable electroplated titanium black panel is available.

MECHANICAL DATA:

1. Key: 67 keys, SUS304 brushed stainless steel

2. Key top style: Protuberant keys, with laser engraved and etched legends and raised braille on keys are available

3. Key travel:2.0mm

4. Front Plate: Super quality brushed stainless steel

5. Actuator/keys materials: stainless steel

6. G.W.: 2.0KGs

TOUCHPAD DATA:

1. Touchpad cover: Composite

2. More than Lifetime 10 million strokes

3. Mutual Capacitance sensing

4. X/Y position sensing resolution: 40 counts/mm

5. X/Y position reporting: Relative

6. Output (self-detectable depending on cable): PS2 or USB

7. Tracking speed: Maximum 1,016 m/sec

8. Power supply voltage: 5 VDC ±0.25V

9. Current rating (active mode): 17 mA

ELECTRICAL DATA:

1. Supply Voltage: +5V DC +/-5%

2. Current Rating: appr. 20mA

3. Switch Contact Material: Carbon-on-Gold key switch technology

4. Interface: PS2, USB available.

5. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:

1. Operating temperature:-20°C to +60°C.

2. Storage temperature: -30°C to +70°C.

3. Operating RH: 30-90%.

4. Atmospheric pressure: 60-106Kpa.

RELIABILITY:

1. RoHS Compliant, CE and FCC

2. Protection Level: IP65(front panel static)

3. Vandal resistant IK09

4. MTBF >50000H.

5. MTTR <30min..
