IK07 Metal Industrial Keyboard With Touchpad 304 Stainless Steel

Features of metal keyboard:

• The design of IP65 waterproof and dustproof protection level, after installation, the keyboard can achieve the effect of waterproof and dustproof on the surface, and prevent liquid or dust from penetrating into the keyboard.

• The user-friendly layout of the key surface, the key surface is laser engraved and then etched with moderate depth patterns and characters for better operation, and long-term use will not cause the characters to fall off or be worn.

• Customize any key surface in multiple languages to adapt to different countries and various customized styles.

Performance of stainless steel industrial keyboard:

1. Electromagnetic compatibility standards: 89/336/EEC EN55022: 1988+A1: 2003 EN55024: 1988+A1: 2001+A2: 2003

2. Expected service life: >5 years

3. Key switch technology: conductive carbon particles/gold-plated PCB

4. Interface technology: PS2, USB optional

5. Key stroke: 2.0mm

6. Key life: more than 5 million operations per key.

7. Pressing force: 1.2N+/-0.1N (contact force)

8. Touchpad material: 1.3mm thick PCB with polyester fil

9. Working voltage: DC +5V+/-5%

10. Working current: 10mA

11. Electromagnetic radiation: EN50081-1

12. Electromagnetic immunity: EN50082-1

Data of industrial keyboard touch screen:
1. X/Y position sensing resolution: 40 counts/mm
2. X/Y position reporting: Relative
3. Output (self-detectable depending on cable): PS2 or USB
4. Tracking speed: Maximum 1,016 m/sec
5. Power supply voltage: 5 VDC ±0.25V
6. Current rating (active mode): 17 mA

7.Touchpad cover: Composite
8. More than Lifetime 10 million strokes
9. Mutual Capacitance sensing
Environmental adaptability of industrial stainless steel keyboard:

CAD drawings of metal keyboard products:

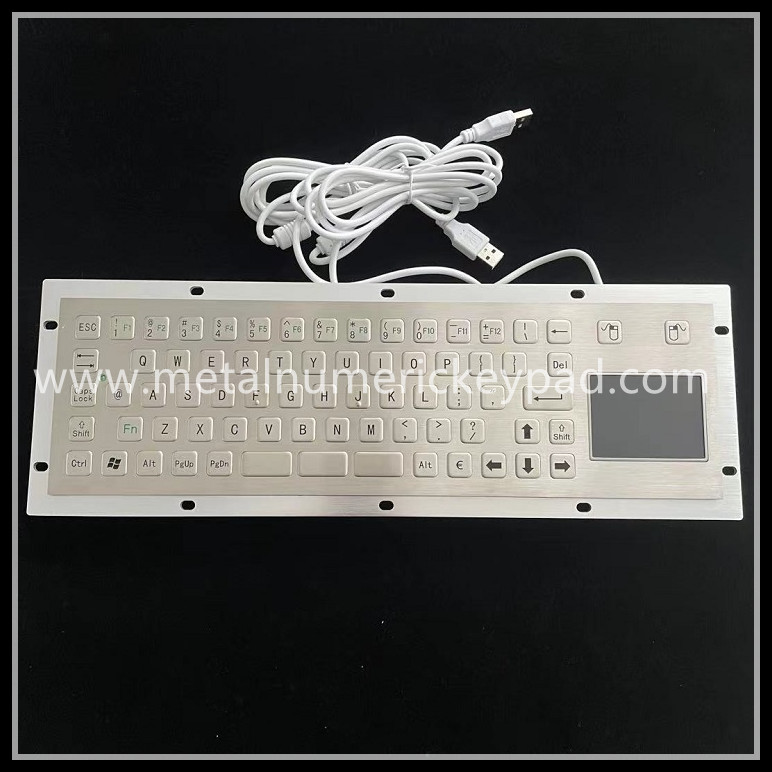

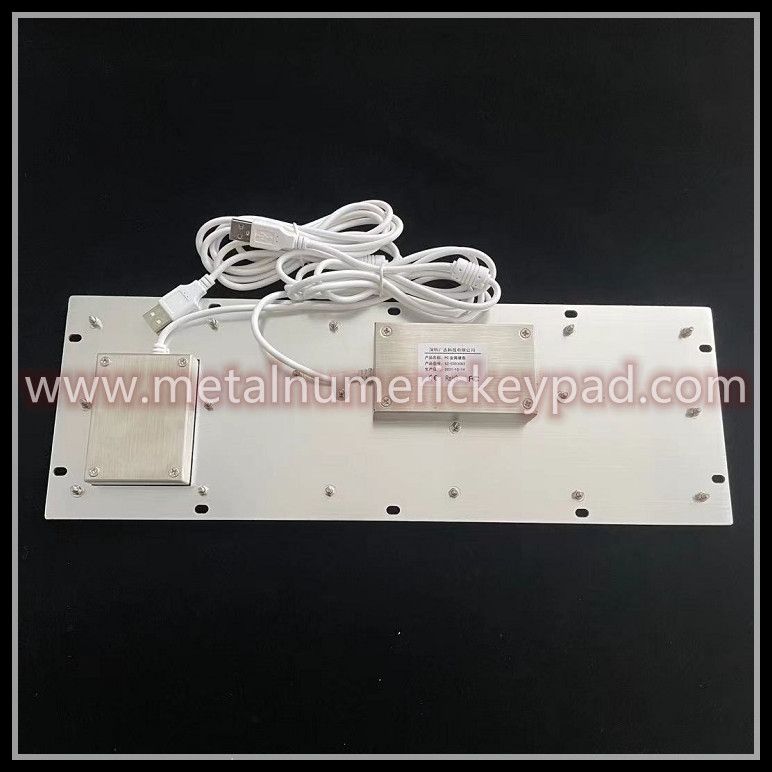

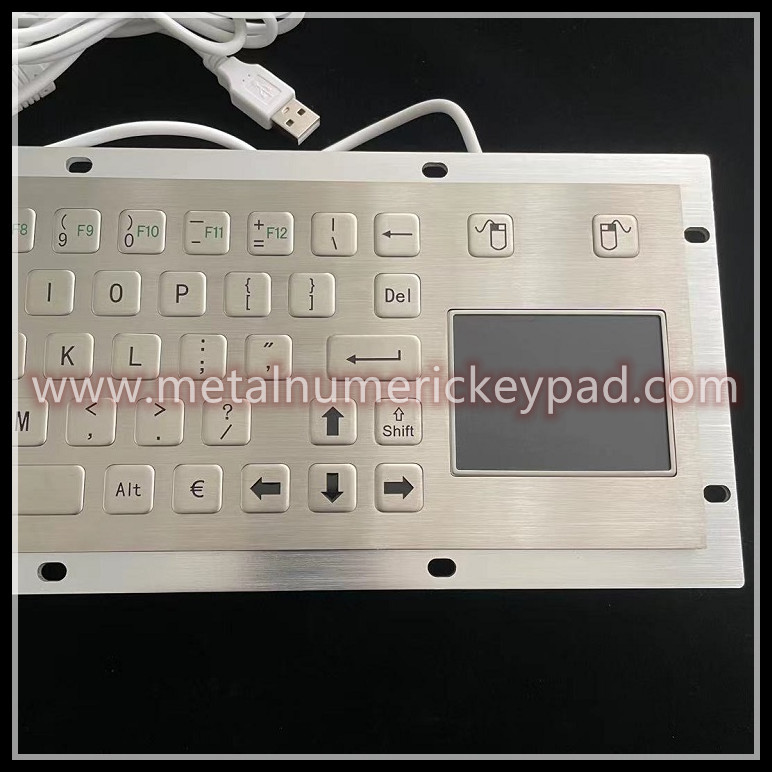

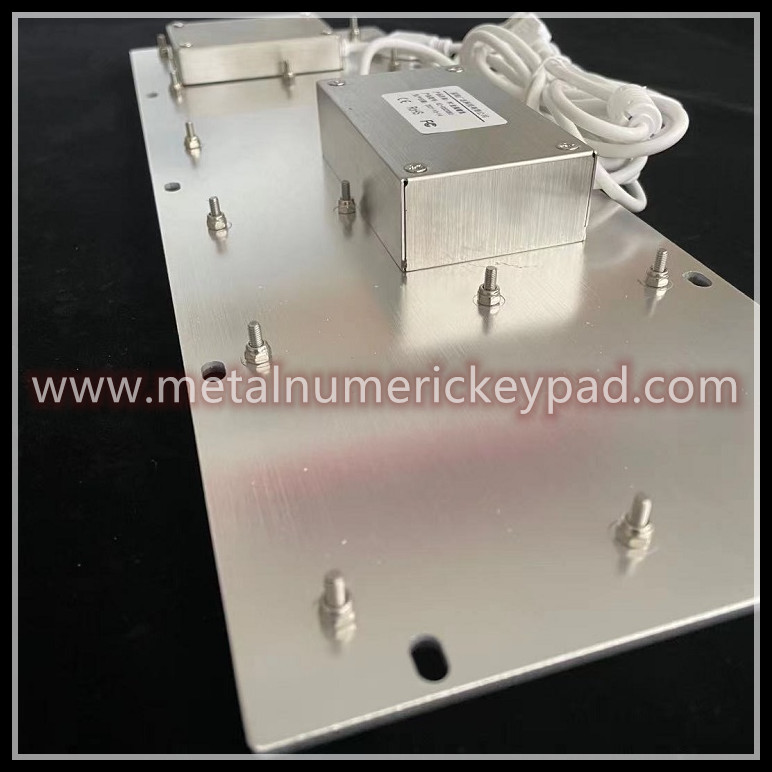

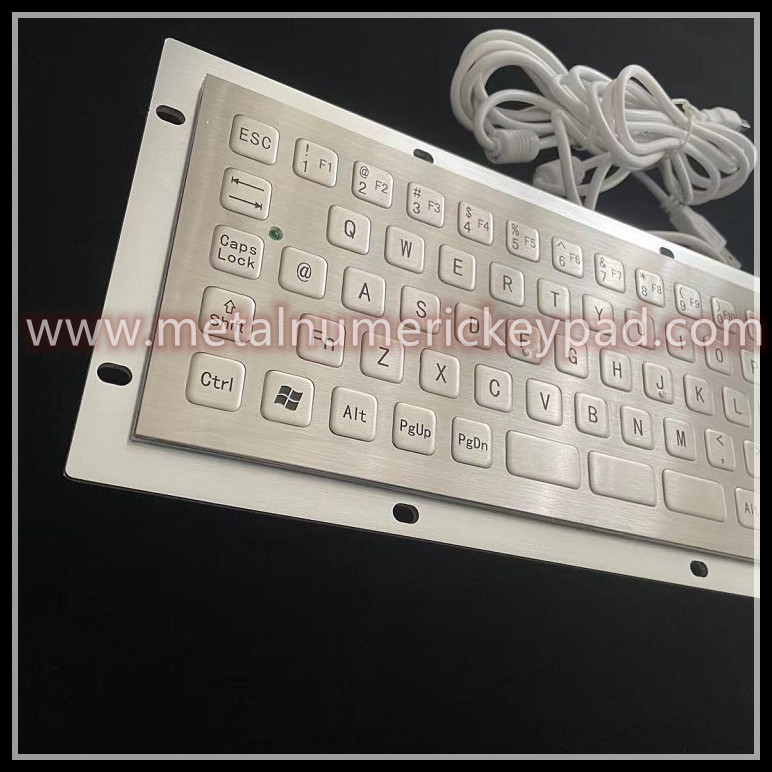

Picture of the front and back of the industrial waterproof keyboard:

Physical image of riot keyboard packaging:

Why choose us:

* Quick response, 24*7 service.

* Small orders are welcome.

* Delivery time: 2-20 working days.

* Since 2000, with more than 20 years of research and development and 15 years of manufacturing experience.

* Extensive experience in OEM and ODM orders can help you customize your own professional products.
