Product Name: Metal Keyboard

Model: GZ-B013023

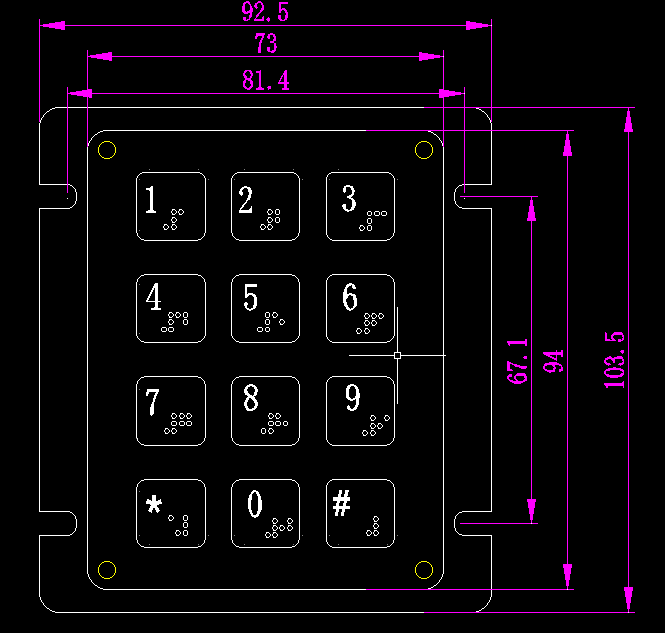

Product Size: 73mm*94mm

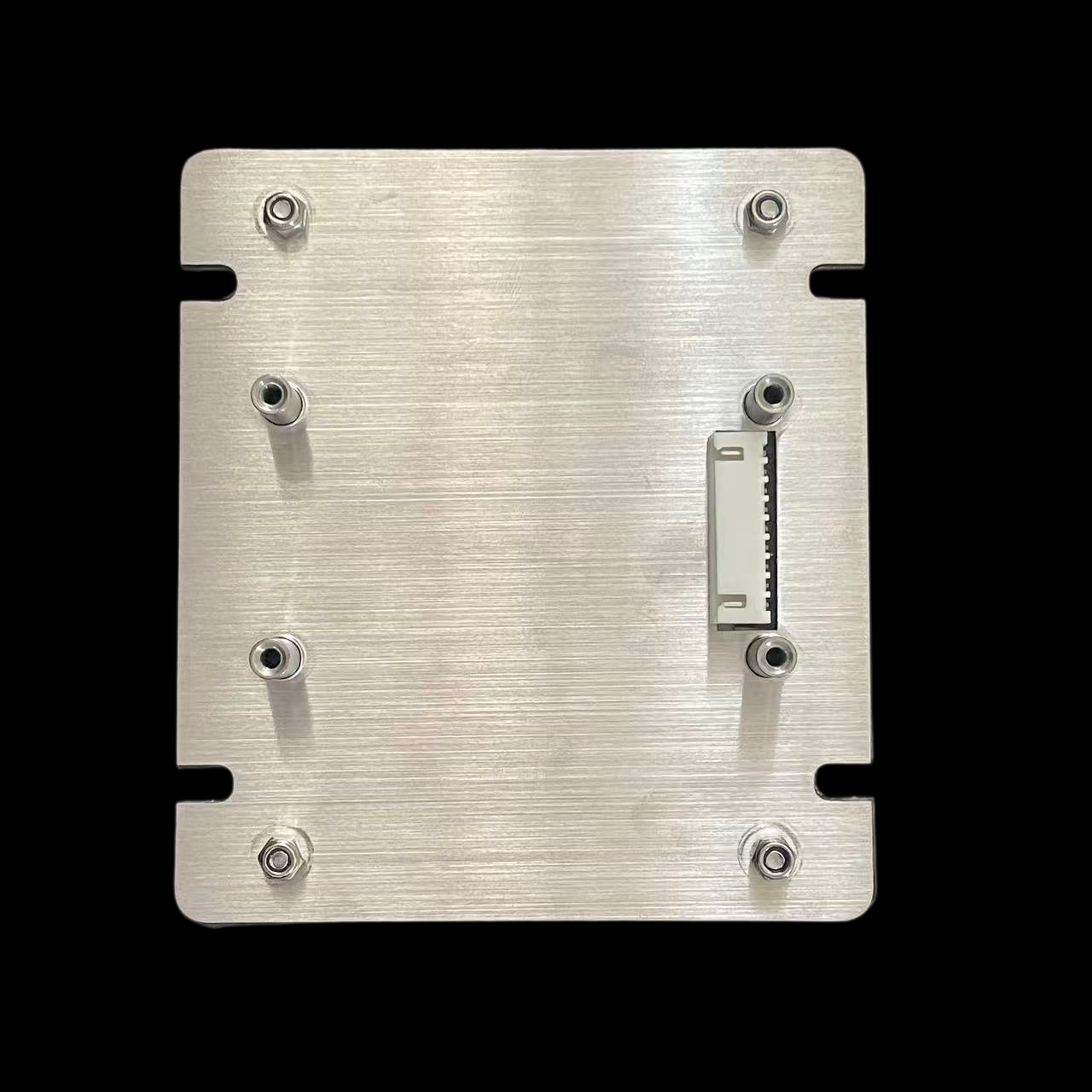

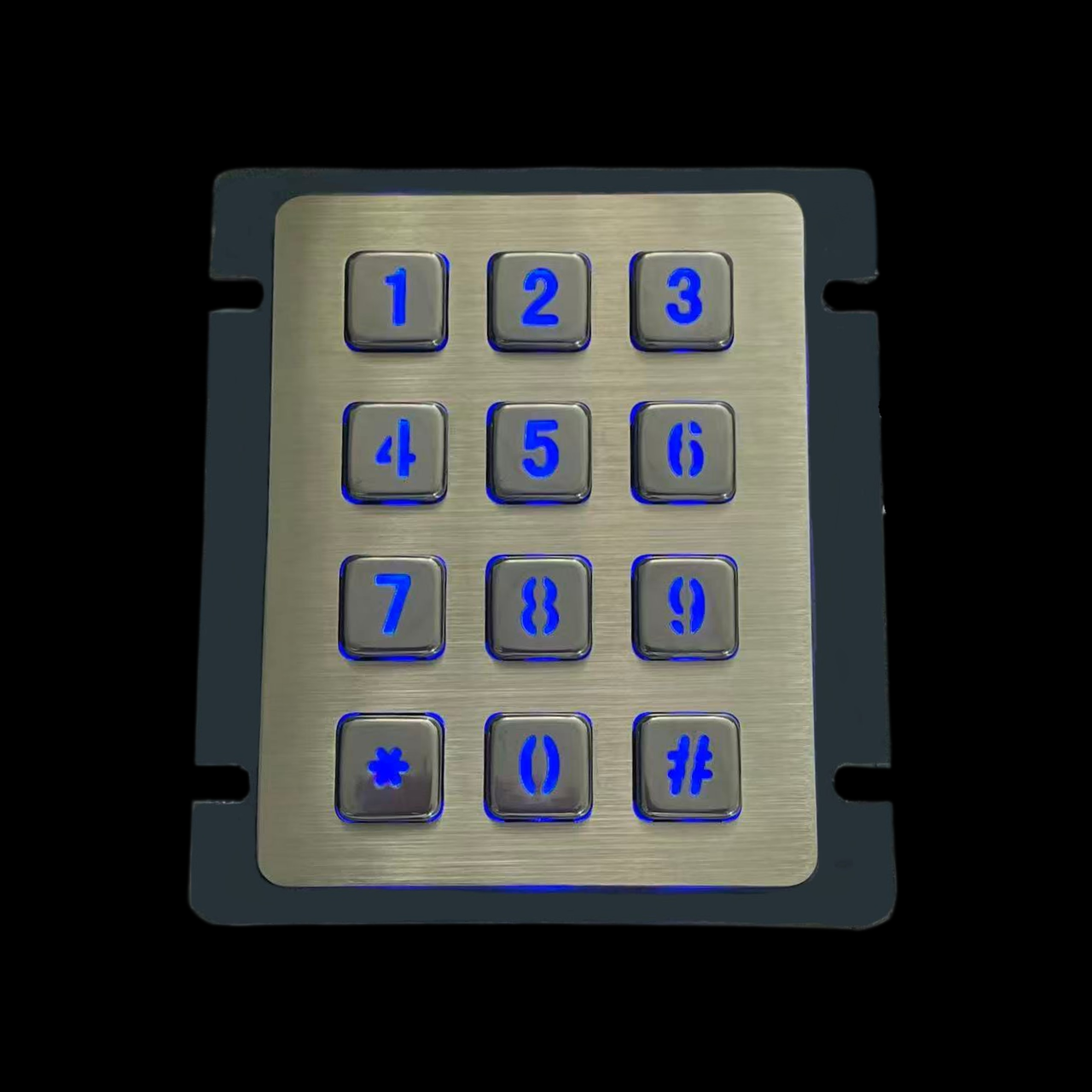

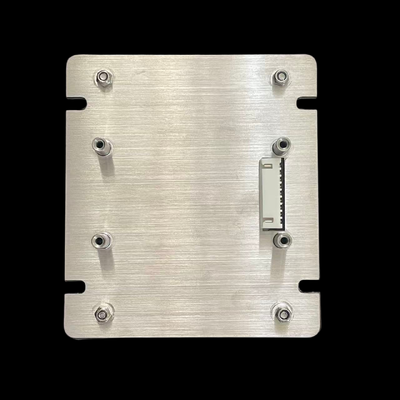

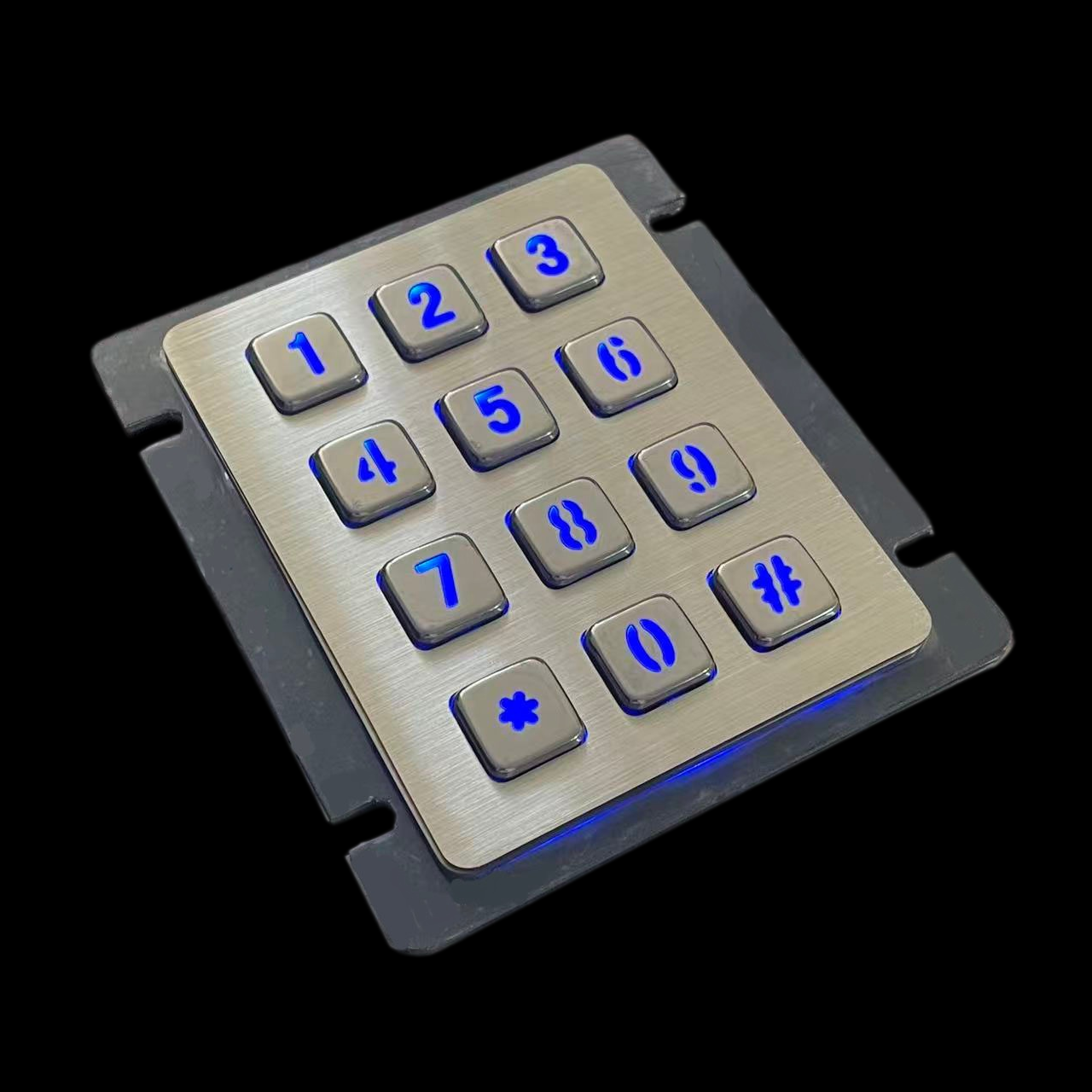

Product Description: LED dustproof & waterproof stainless steel keyboard with backlit keys. It consists of 10 numeric keys and 2 function keys with compact key layout. The keys feature a 2.0mm long travel. The stainless steel front panel adopts stud mounting from the bottom. Built with an all-stainless steel panel and silicone keys, it boasts precise mold fit and attractive surface finish.

Product Application

Mainly applied to information terminals in various unattended or semi-attended sites, such as internet terminals, information kiosks in universities, shopping malls, hotels, banks, airports, railway stations and other public places, ticket vending machines, gas stations, ATMs (automated teller machines), public telephones, etc.

Main Features

1. LED backlit characters, eco-friendly and energy-saving with service life over 30,000 hours. It is more convenient for use in dim light or at night.
2. The stainless steel panel and keys are vandal-resistant. It can operate reliably even in harsh environments.
3. Designed with IP65 dustproof and waterproof rating. The mounted keyboard achieves surface dustproof and waterproof performance.
4. This keyboard adopts long-travel raised keys with good tactile and visual feedback. It can be operated clearly in dim lighting and enables quiet, fast and accurate data input for users.
5. The keys on the metal keyboard are anti-pry, resistant to bending and detachment, preventing key fall-off and damage.
6. Customizable multi-language key legends to adapt to different countries and various customized styles.
7. Simple installation; USB interface available for connecting to host for keyboard operation.

Mechanical Specifications

1. Keys: 12 keys, imported printed brushed SUS304 stainless steel
2. Key design: Square raised keys; patterns and characters formed by laser engraving followed by etching hollow-out
3. Key dimension: Standard key: 14mm*14mm
4. Key travel: 1.5mm
5. Key lifespan: Over 2 million actuations per key
6. Operating force: 1.2N ±0.1N (contact force)
7. Front panel: Imported printed brushed SUS304 stainless steel, thickness 2.0mm

Electrical Specifications

1. Operating voltage: DC +5V ±5%
2. Operating current: 70mA
3. Expected service life: >5 years
4. Key switch technology: Metal dome
5. Interface options: USB, 2*9P flat cable
6. Operating Systems: DOS / Windows / Vista, Linux, Unix, Mac OS X, Android, iOS

Environmental Characteristics

• backlit keypad
• vandal proof /vandal resistant
• IP65 waterproof
• stainless steel metal keypad
• access control keypad
• panel mount
• kiosk / ATM
