Multi Functional Compact Layout Metal Numeric Keypad With Usb Connector

Basic Information
Place of Origin: SHENZHEN CHINA
Brand Name: szguangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-B015010-001
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T
Supply Ability: 1000000pcs
Detail Information
Application: Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller Product Name: Stainless Steel ATM Keyboard, Mini Usb Wired 19 Key Digital Numeric Keypad, ATM PINPAD, Custom Numeric Keypad
Interface: 7PIN Or 8PIN Material: Stainless Steel
Printing: Digital Printing OR Laser Marking Weight: 1KG
Highlight:

multi functional metal numeric keypad

,

compact layout metal numeric keypad

,

usb connector stainless keyboard


Product Description

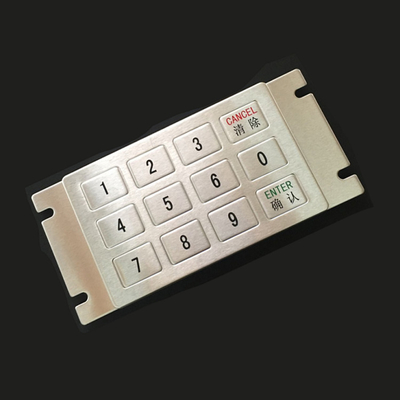

15 Key Rugged Stainless Steel Functional Keypad with USB connector

Metal Numeric Keyboard is mainly use for unattended internet terminals and information kiosks in public areas, self-service terminals in bank, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones, industrial console,Mining Industry Keyboard,public information kiosk,Pump test bench,Fuel dispenser etc

Product Description: Waterproof stainless steel keyboard, number key and two function keys, compact layout of keys, using 0.5mm long key stroke, the installation method is from inside to outside, the whole thickness is: 13.5mm (excluding the control board), using full waterproof silica gel design, stainless steel panel and laser engraved key design, the mold with precision and accuracy, beautiful and generous surface treatment.

Electrical parameters:
1. Working voltage: DC + 5V + / - 5%
2. Working current: 20mA
3. Expected service life: > 5 years
4. Key switch technology: imported gold-plated pot chips
5. Interface technology: 7pin OR 8pin



Quantity(Pieces)

1 - 1000

>1000

Est. Time(days)

1-25

To be negotiated



Multi Functional Compact Layout Metal Numeric Keypad With Usb Connector 0













Multi Functional Compact Layout Metal Numeric Keypad With Usb Connector 1







Multi Functional Compact Layout Metal Numeric Keypad With Usb Connector 2



Multi Functional Compact Layout Metal Numeric Keypad With Usb Connector 3





Advantage Of Metal Numeric Keypad

1. 20 years' producing history and 10 years' exporting experience.

2: Stable and experienced working team: more than 80% of the staffs have been working in our factory for more than 6 years.

3: Professional engineering team will offer technical support in development step of new project.

4. Provide one-stop production and assembly service from custom membrane switch to PCBA, enclosure, back plate etc.

5. Using high standard mould to assure the products with high quality and precise dimensions.

6. In-house 100% functionally tested.
