| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | guangzhi |
| Certification: | CE、FCC、RoHS |
| Model Number: | GZ-Z010120 |
| Minimum Order Quantity: | 1pcs |
| Price: | To be quoted |
| Packaging Details: | Individual product package size:235*150*50mm, Carton Size:482*320*275; |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100000pcs |
| Application: | Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. | Connection: | USB,PS2,R232 |
|---|---|---|---|
| Material: | Stainless Steel | Color: | Stainless Steel |
| Pleverotection Levell: | IP65 | Key Travel: | 0.45mm |
| Highlight: | ip65 metal numeric keypad,vandal proof metal numeric keypad,self service equipment stainless keyboard |
||
Self service equipment industrial stainless steel metal keyboard for medical and Liao equipment
Description Of Metal Numeric Keypad
Waterproof stainless steel keyboard, number key and two function keys, compact layout of keys, using 0.5mm long key stroke, the installation method is from inside to outside, the whole thickness is: 13.5mm (excluding the control board), using full waterproof silica gel design, stainless steel panel and laser engraved key design, the mold with precision and accuracy, beautiful and generous surface treatment.
FEATURES

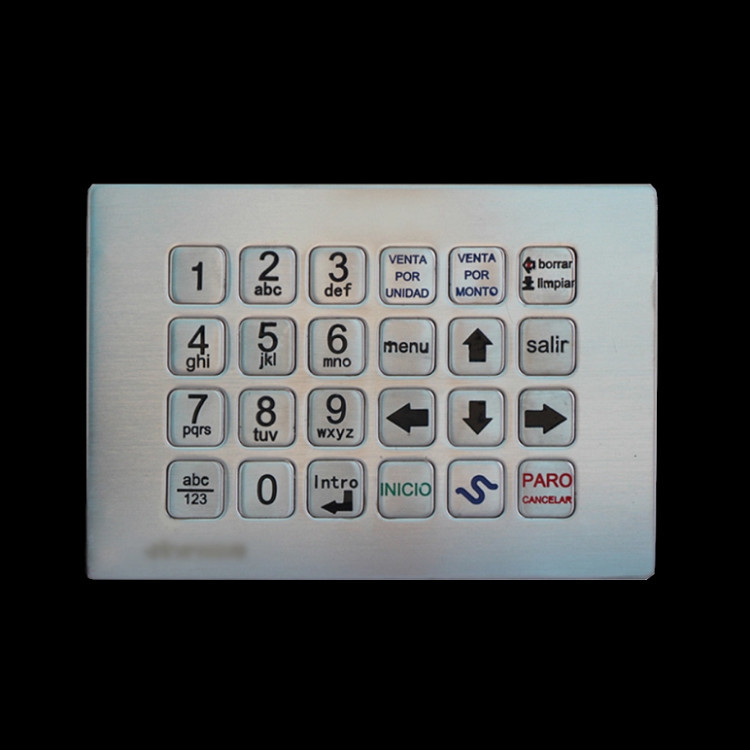

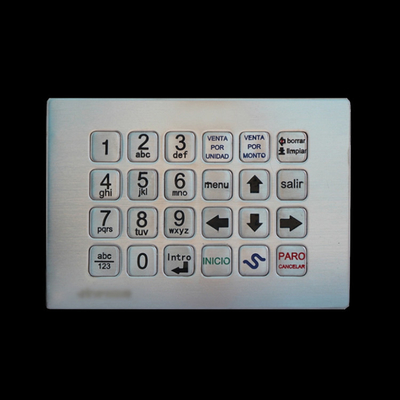

1. 24 Keys vandal-proof IP65 stainless steel matrix keypad. 10 number keys, 14 function keys.
2. Keys are good touch feeling and accurate data input without any noise.
3. Easy to install and maintenance; flush mount.
4. Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
5. Fonts and pattern of key surface can be customized.
6. The keypad is waterproof, anti-drilling and removal-proof.
7. The keypad uses double-sided PCB and mental dome; Good contact.
8 . Suitable for the device which needs to select ↑↓←→.
9. The labels on the buttons are made by etching, and fill in high strength paint.
USER OPTIONS
1. Surface treatment of frame and keys: satin-finished or mirror polish.
2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.
3. Labels on the buttons can be customized by etching.
APPLICATION
|
self-service library |
self-service kiosk |
CNC machine |
|
household applications |
oiling machine |
charge spot |
|
industrial telephone |
ATM |
access control |
|
ticket machine |
vending machine |
medical facility |
|
security system |
fingerprint attendance machine |
|
PARAMETERS
|
Model number |
B734 |
|
Defend Grade |
IP65 |
|
Keys |
24 keys |
|
Vandal resistant |
IK09 |
|
Electrical lifetime |
> 5 years |
|
Contact resistance |
200 ohm (max) |
|
Current Rating |
appr. 30mA |
|
Power supply |
+ 5V +/- 5% |
|
G.W. |
0.40kg approx |
|
Dimensions |
140mm *96mm*5.5mm |
|
Frame/keys materials |
Stainless steel |
|
life span |
≥2 million |
|
Elasticity of key |
2.5-3N |
|
Key travel |
≤100Ω |
|
Atmospheric pressure |
60-106Kpa |
|
Operate Temperature |
-40℃~+85℃ |
|
Travel distance |
0.45mm |
Our Service
OEM/ODM is available
All of products to be custom according to customers' drawings or samples.
If you no drawing or sample, please let me know some information, our engineer can help you to develop new items and make technical drawing .
Assembly Services
We can provide assembly services. We mainly manufacture metal parts, we also provide plastic parts that will fit ours and final complete products.
Testing/Certificates
We help customers to do testing and certficates application such as SGS, Rohs, CE, UL,etc..
