Black Panel Backlit Numeric Keypad Stainless Steel Metal Translucent LED Lighted Keypad

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP65
Model Number: GZ-B030017A
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T,Paypal
Supply Ability: 100000pcs
Detail Information
Application: Self-service Equipment Connection: R232 And Usb
Material: Stainless Steel 304 Certification: IP63
Light Color: Blue Panel Color: Black
Highlight:

Black Panel Backlit Numeric Keypad

,

304 Backlit Numeric Keypad

,

Stainless steel led backlit keyboard


Product Description

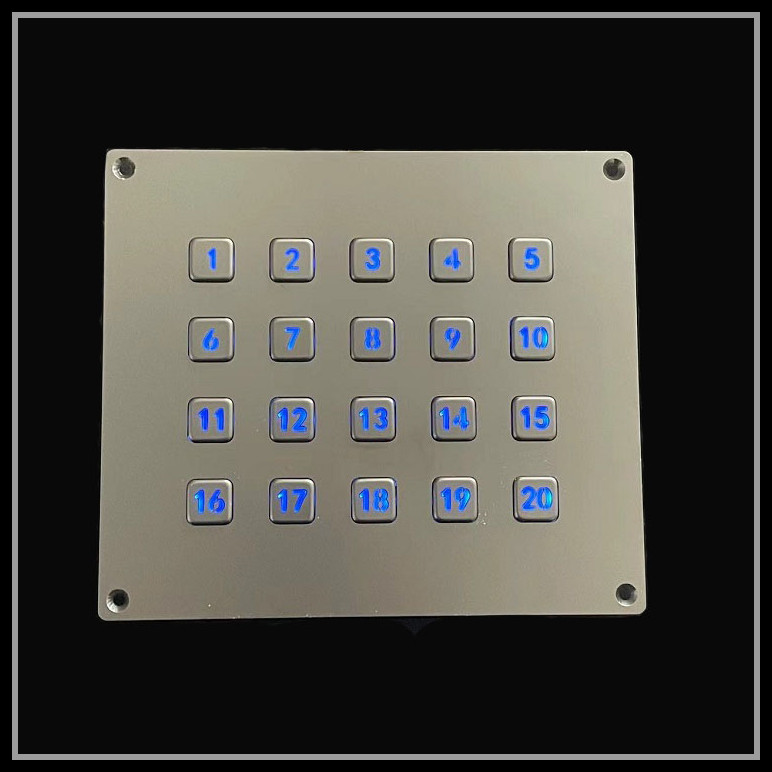

Product name: LED metal keyboard

Product Model: GZ-B030017A

Product size: 166mm*145mm

Product description: The LED stainless steel black keyboard is made of backlit keys. It consists of 20 keys. The keys are compactly laid out. They use 0.5mm long keystroke and are installed on the front stainless steel panel. The surface is plated with black design, the mold matching is precise and accurate, and the surface treatment is beautiful and generous.



Letter of agreement:

1.Hardware specification



baud rate

9600 bps

Data length

8 bits

Stop bit

1 bit

Parity

NO

2.Data Format:



1 byte

1 byte

1 byte

2 byte

1 byte

start character

(0xAA)

Command word

(0x05)

data

(ASCII code)

XOR sum from start character to data (including start character and data) (1 byte is split into 2 when sending, and sent in ASCII format)

terminator

(0xBB)

3. If the [A] key is pressed, the data flow is: AA 05 41 45 45 BB

4. The data stream sent to the PC through the serial port is:

AA

05

41

45

45

BB

5 The USB interface and the R232 interface can communicate at the same time, and the R232 can also communicate when the key value can be modified. It must be operated when the USB is connected to the computer to get power;

main feature:
1. The LED font is illuminated, which is environmentally friendly, energy-saving, and has a lifespan of more than 30,000 hours. It is more convenient to use in dim light or at night.
2. Both the stainless steel panel and the buttons can prevent deliberate damage, especially in harsh environments, and can also operate well.
3. After the keyboard is installed, the surface can be waterproof and dustproof.
4. The keyboard adopts long-stroke convex keys with good tactile and visual experience, which can be used more clearly in dimly lit environments, and realize fast and accurate data input without noise.
5. The keys on the surface of the metal keyboard are well tamper-proof, not easy to bend and detach, so that the keys can be prevented from falling off and being damaged.
6. Customize any key surface in multiple languages to adapt to different countries and various customized styles.



Black Panel Backlit Numeric Keypad Stainless Steel Metal Translucent LED Lighted Keypad 0



FAQ

Q1) Since we are working together for the first time, is payment safe for me?

A: Our company is certified and registered in China and Hong Kong, which will guarantee your product receipt, and we also accept other secure payment methods you want.

Q2): Are you a manufacturer (factory)?

A: Yes. OEM/ODM service is also available here. Feel free to share your thoughts with us. We are happy to provide you with the best solution.

Q3) Do you support custom keyboard language and layout?

A: We support free language and layout customization!
