LED light SUS304 IP67 waterproof numeric keypad for car washing machine

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-B009060
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: Self-service Equipment, Self-service Car Washing Machine Connection: 1*8P(2.54 Spacing) And 1*2(light)
Material: Stainless Steel 304 Certification: FDA, SGS, ROHS, LFGB, REACH
Light Color: Red Yellow Blue Green Usage: Numeric Equipment
Elasticity Of Key: 2N-3N LED Voltage: 3v
Highlight:

Stainless Steel 304 Numeric Keyboard

,

IP67 Led Backlit Keyboard

,

SUS304 Backlit Numeric Keyboard


Product Description

Backlit Metal Keyboard Product Number: GZ-B009060
Waterproof keyboard product size: 100 * 91.5mm
Description of the illuminated keyboard: It adopts rubber waterproof design, and is equipped with number keys and 6 function keys. The key stroke is 2.0mm, assembled from the inside out, and the thickness is 28mm (including the bottom case); it uses a full stainless steel panel, The design of rubber key and laser engraving, and after precision polishing, the surface treatment is exquisite and magnificent;
The application of stainless steel waterproof keyboard: it is mainly suitable for various non-standard or semi-standard information terminal places, banks, gas dispensers, outdoor self-service car washing machines, special products;
Digital metal keyboard performance: 1. LED font light, environmental protection and energy saving, long service life of more than 30,000 hours, darker light or more convenient to use at night.
2. The stainless steel panel and buttons can prevent deliberate damage, especially in harsh environments.
3. IP65 waterproof and dustproof grade protection design, after the keyboard is installed, the surface can be waterproof and dustproof.
4. The keyboard adopts long-stroke convex keys, which has a good tactile visual experience. It is clearer to use in dimly lit environments, and realizes user-free, fast and accurate data input without noise.
5. The keys on the metal keyboard surface are very helpful to prevent crushing, and are not easy to bend and separate, thereby preventing the keys from falling off and being damaged.
6. Customize any button surface in multiple languages ​​to adapt to different countries and various custom styles.
7. Easy to install, provide USB interface to connect to the host for keyboard operation;

Mechanical specifications of metal keyboard:

Keys

16 keys

Button size

14*14mm, 14*28mm

Key stroke

0.5mm

Button life

2 million times

Button elasticity

1.2N +/- 0.1N (contact strength)

Keyboard life

> 5yer

Working current

DC + 5V / -5%

Key switch technology

rubber keys

Interface technology

1 * 8PIN and 1 * 2P (light)

Operating system

DOS / Windows95 / 98 / NT / ME / 2000/2003 / XP / Vista, Linux, Unix, Mac osx

Waterproof and dustproof metal keyboard environment adaptation:

  1. Working temperature: -20℃ to +60℃

  2.  Storage temperature: -30℃ to +70℃

  3. Relative humidity: 30-90%, no condensation

  4. Atmospheric pressure: 50-100Kpa

  5. IP rating: IP65 (static) / IP (dynamic)

CAD drawing of the numeric keypad:

 LED light SUS304 IP67 waterproof numeric keypad for car washing machine 0

Matrix diagram of metal stainless steel keyboard:
 LED light SUS304 IP67 waterproof numeric keypad for car washing machine 1

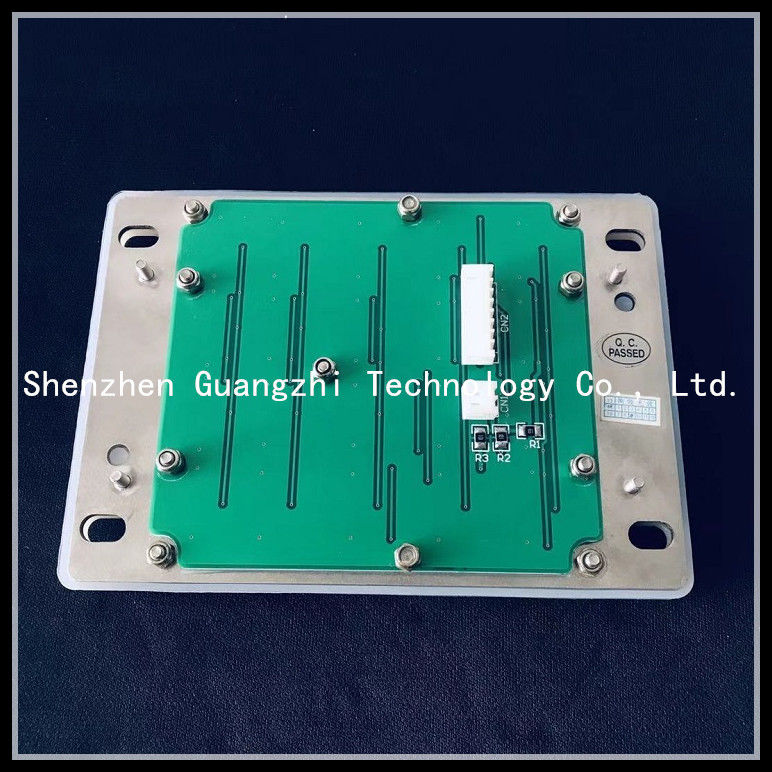

Front and back pictures of the backlit keyboard:

LED light SUS304 IP67 waterproof numeric keypad for car washing machine 2





LED light SUS304 IP67 waterproof numeric keypad for car washing machine 3







LED light SUS304 IP67 waterproof numeric keypad for car washing machine 4



FAQ
Q1) Because it is the first time we cooperate, is payment safe for me?
Answer: Our company is certified and registered in China and Hong Kong. This will ensure that your products are received. We also accept other secure payment methods you want.
Q2) Do you support custom keyboard language and layout?
Answer: We support free language and layout customization!
Q3) Is your keyboard waterproof?
Answer: We do have a waterproof metal keyboard, the protection level is IP65-IP68.
Q4) Are you in the factory?
Answer: Yes! Shenzhen Guangzhi Technology is a professional manufacturer of metal keyboards with a history of more than ten years
