0.45mm Key Travel Industrial Numeric Keypad 3 * 4 Matrix Waterproof Thin Film

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-N001010
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: 8P
Material: Thin Film Switch Certification: CE, FCC, CE And FCC Certified, RoHS
Key Travel: 0.45mm Storage Temperature: -40°C To +80°C
Highlight:

automatic gate keypad

,

vending machine keyboard


Product Description

Manufacturer's 3 * 4 matrix waterproof membrane switch keyboard microswitch plastic keypad

Product Name: 3 * 4 film switch button (pet silver paste printing line)

Product specification:69.2 * 76.9mm

Product Description:

Membrane switch key, Digital key and two function keys. The key is in compact layout, With 0.45mm stroke. The installation method is adhesive on the back. The whole thickness is 1mm, Simple and convenient installation, Beautiful appearance;

Electrical Parameters:

Working voltage: ≤ 50VDC / port / mil

Working current: ≤ 100mA

Contact resistance: 0.5 ~ 10 Ω (varies with lead length and material)

Insulation resistance: ≥ 100m Ω 100V

Basic withstand voltage: 2kdvc

Rebound time: ≤ 8ms

Loop resistance: 50 Ω, 150 Ω, 350 Ω, or as required by the user

Insulation ink withstand voltage: 100VDC

8) Mechanical Properties:

Closing displacement: 0.1-0.4mm (without touch) 0.4-1.0mm

Standard working force: 15-750g

Silver slurry migration: after 56 hours at 55 ℃, 90% temperature, 10m Ω / 50VDC between the two lines; there is no oxidation and impurities on the silver slurry line

Pin spacing standard 2.54, 2.5, 1.27, 1.25mm

The curvature resistance of outgoing line is made of D = 10 mm steel. Stick pressure 80 times continuous line

9) Environmental Parameters:

Working temperature: - 20 ℃ ~ + 70 ℃

Storage temperature: - 40 ℃ ~ + 85 ℃

Storage humidity: 95% ± 5%

Atmospheric pressure: 86 ~ 106kpa

APPLICATION

self-service library

self-service kiosk

CNC machine

household applications

oiling machine

charge spot

industrial telephone

ATM

access control

ticket machine

vending machine

medical facility

security system

fingerprint attendance machine

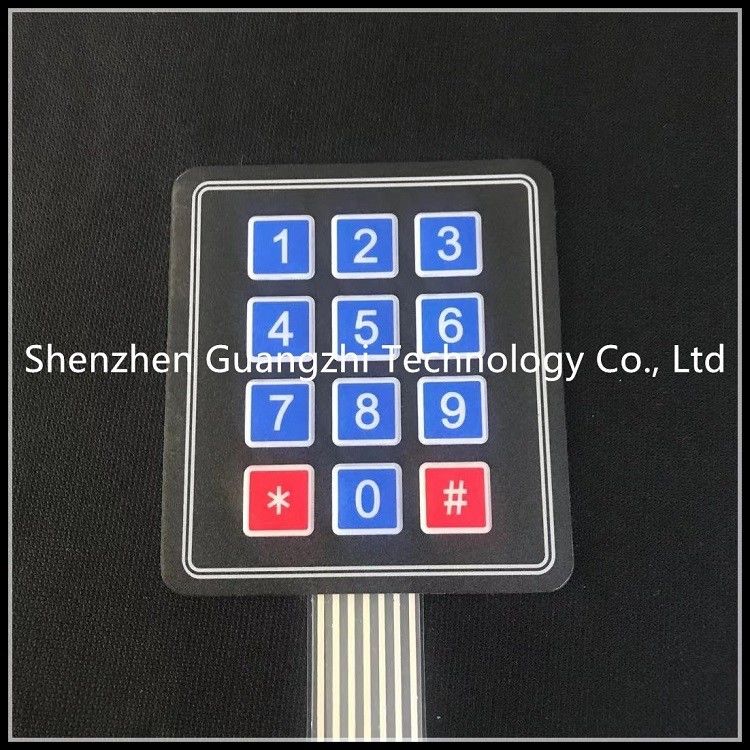

0.45mm Key Travel Industrial Numeric Keypad 3 * 4 Matrix Waterproof Thin Film 0

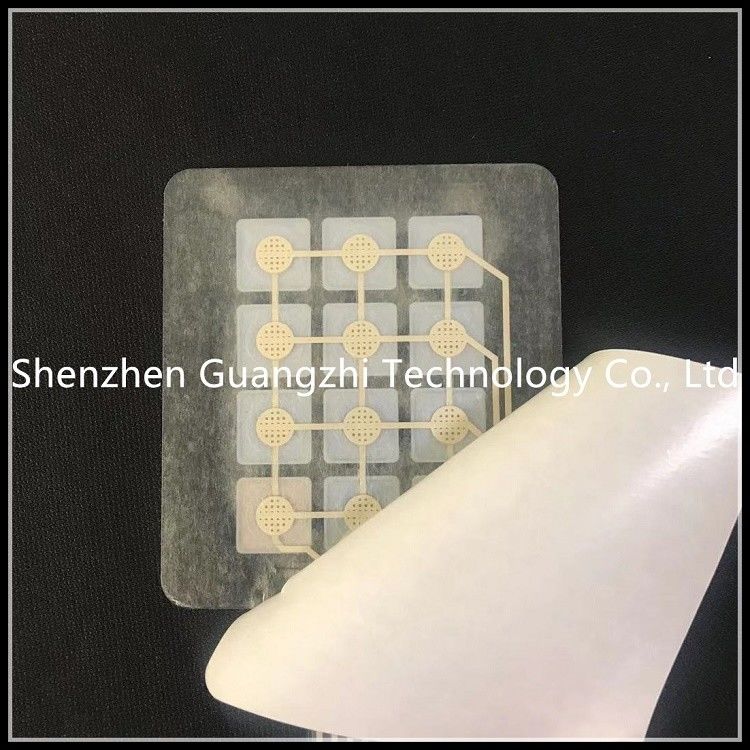

0.45mm Key Travel Industrial Numeric Keypad 3 * 4 Matrix Waterproof Thin Film 1



0.45mm Key Travel Industrial Numeric Keypad 3 * 4 Matrix Waterproof Thin Film 2



0.45mm Key Travel Industrial Numeric Keypad 3 * 4 Matrix Waterproof Thin Film 3
