3x4 Layout 12 Button Keypad Matrix Type , Wired Numeric Keypad For Access Control

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-Z010260-001
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB,PS2,R232,8P
Material: Stainless Steel Certification: CE, FCC, CE And FCC Certified, RoHS
Number Of Keys: 12Key Storage Temperature: -40°C To +85°C (-40°to 185°F), -40°C (-40°F) To +70°C (158°F)
Highlight:

automatic gate keypad

,

vending machine keyboard


Product Description

Access control 12 key 3x4 matrix stainless steel industrial USB wired customized metal button keyboard

Product Name: industrial metal keyboard

Product specification:55*55mm

MECHANICAL DATA
Model Number GZ-Z010260-001
keys 12 keys
Switching material carbon-on-Gold key switch technology PCB
Actuation Force 2.0 N+/-0.1N (pressure point)
Frame/keys materials Stainless steel 304
Dimensions 55mm*55mm
Key Size 14.0mm *14.0mm
Key Travel 0.45mm
Key life more than 1 million of operations
G.W. 220g approx
ELECTRICAL DATA
Power supply voltage 0-24V DC
Current Rating appr. 20mA
Contact resistance 5 ohm (max)
Electrical lifetime > 5 years
Interface

Matrix Male pinout connector 7PIN 2.54mm

Or customize PS2/USB/RS232

OS All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20 to +75
Storage temperature -35 to +85
Operating RH 30-90%RH
Atmospheric pressure 60-106Kpa

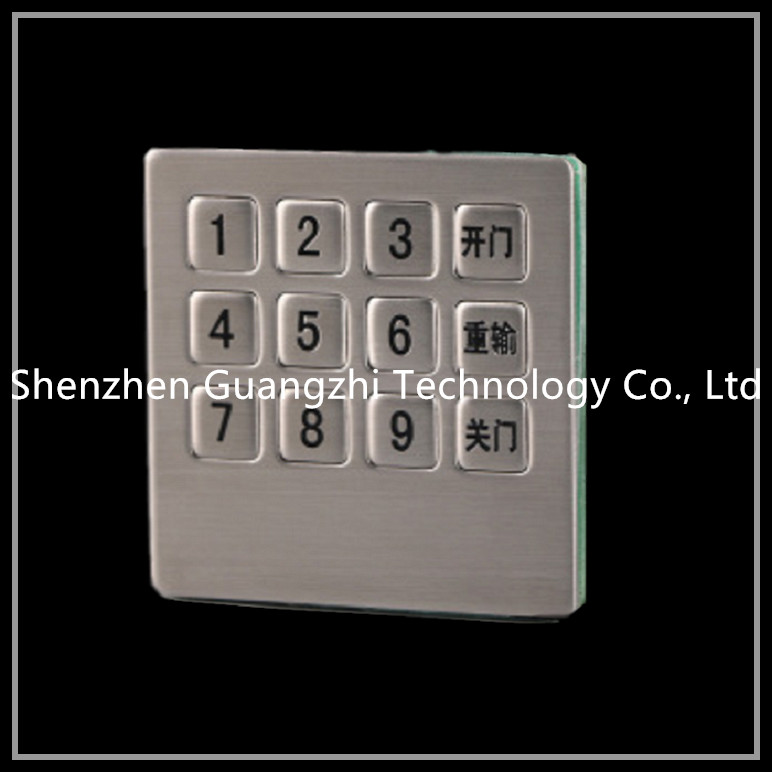

3x4 Layout 12 Button Keypad Matrix Type , Wired Numeric Keypad For Access Control 0

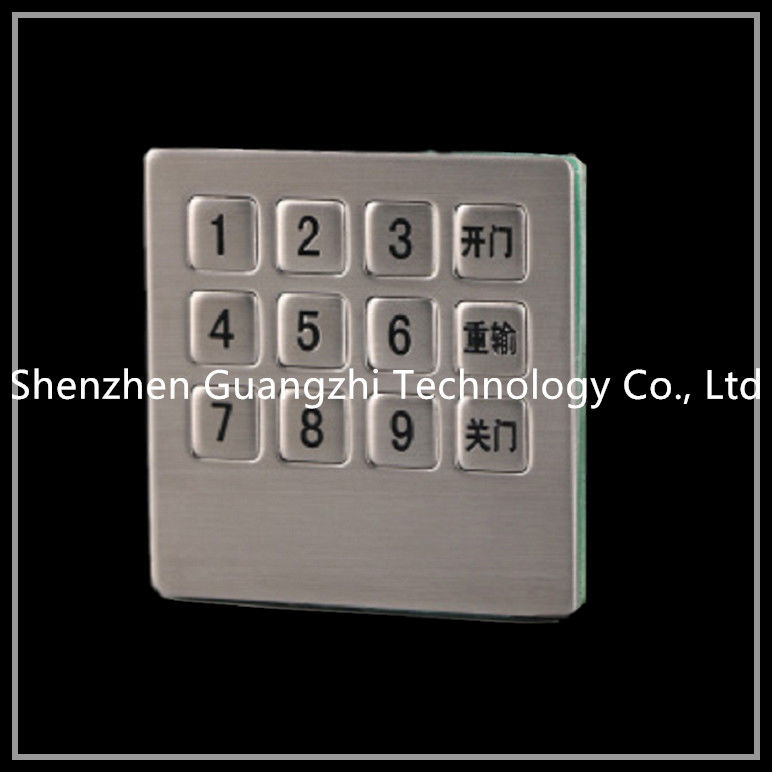

3x4 Layout 12 Button Keypad Matrix Type , Wired Numeric Keypad For Access Control 1
