Industrial Plastic Computer Keyboard , Kiosk Touchpad For Vending Machine

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-Z012022
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: 4-core Aviation Connector
Material: ABS Interface: USB
Wired: Yes Warranty: 1Year
Highlight:

plastic computer keyboard

,

pin code keyboard


Product Description

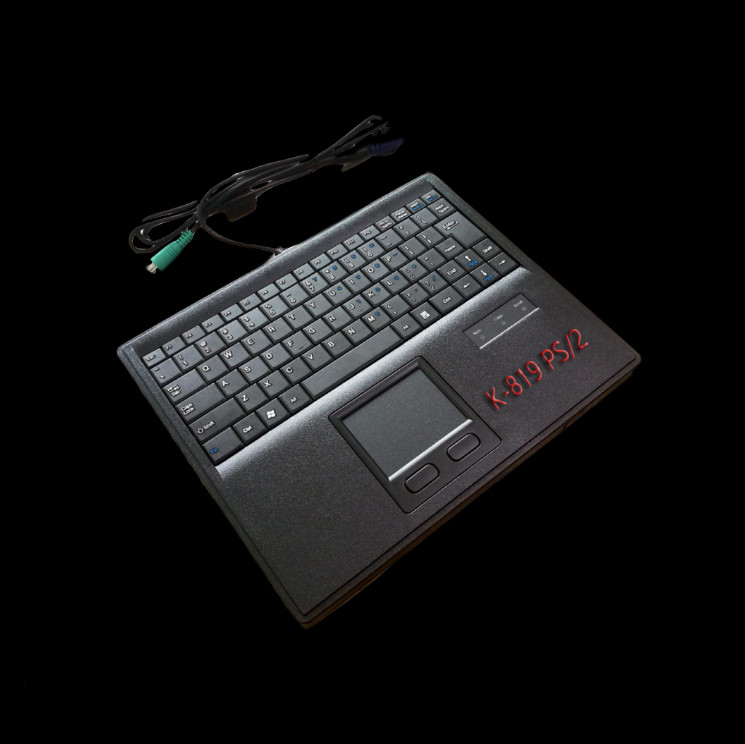

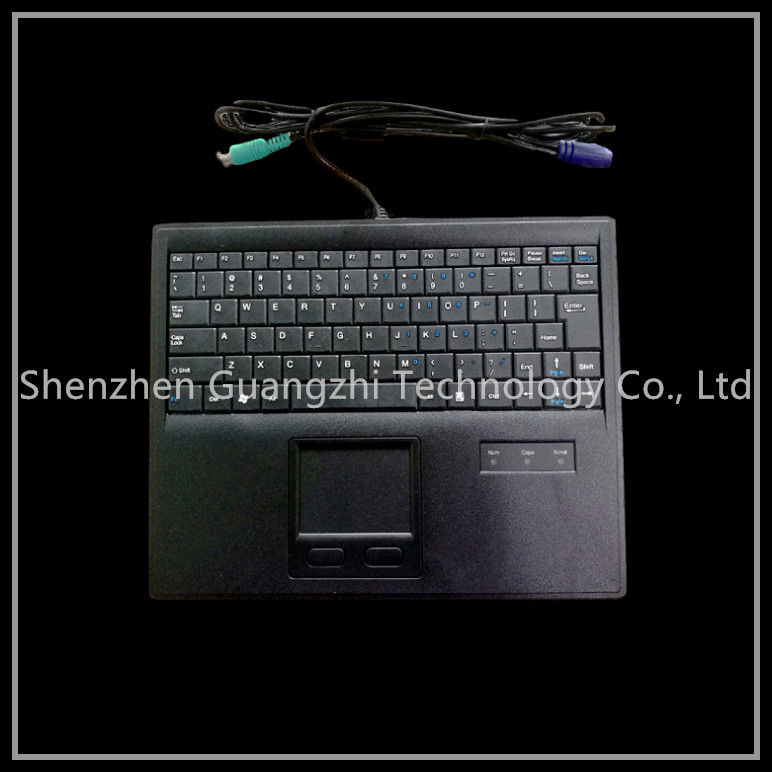

Plastic Computer Keyboard With Touchpad Industrial Kiosk Touch pad Keypad For vending machine

Prod uct NamePin Code Keypad

Product P/N:GZ-Z012022

Product Size: 260*210*14.5mm

Application scope
Bank self-service deposit and withdrawal service equipment, telecommunications, tax, self-service billing inquiry machine, self-service terminal, public information inquiry equipment, automatic monitoring, security equipment, industrial PC numerical control platform, medical testing equipment, self-service payment machine
Mechanical parameters
Key: 84 keys.
Key design: scissor foot key structure, black key cap, blue and white two-color screen printing.
Key stroke: 2.0mm
Key life: ≥ 2 million times
Shell: ABS raw material
Weight: 0.75kg
Size: 260 * 210 * 14.5mm
Electrical parameters
Working voltage: DC + 4.5 ~ + 5.5V
Working current: ≤ 30mA
Expected service life: > 2 years
Interface form: USB power cord with magnetic ring, 1.5m long, and a hub port under the keyboard
Operating system: DOS / Windows98 / me / 2000 / XP / win7
Environmental adaptability:
Working temperature: - 10 ~ 55 ℃
Storage temperature: - 20 ~ 60 ℃

Compatible with: windowns98 / 95 / NT / me / 2000 / XP / Vista / 7.0 / 8.0

1

5V

2

TXD

3

RXD

4

VBUS
