Industrial Kiosk Keypad , Stainless Steel Automatic Gate Keypad Mirror Polished

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP65
Model Number: GZ-Z010100-001
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB OR 10PIN
Material: Stainless Steel Key: 9
Certification: CE, FCC, CE And FCC Certified, RoHS Key Travel: 0.45mm
Highlight:

vending machine keyboard

,

wired numeric keypad


Product Description

Special industrial stainless steel function bar side key metal keyboard for access control

Product name: Industrial Numeric Keypad

Model: GZ-Z010100-001

Size: 168*45mm

USER OPTIONS

1. Surface treatment of frame and keys: satin-finished or mirror polish.
2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

3. Labels on the buttons can be customized by etching.





APPLICATION

self-service library

self-service kiosk

CNC machine

household applications

oiling machine

charge spot

industrial telephone

ATM

access control

ticket machine

vending machine

medical facility

security system

fingerprint attendance machine





PARAMETERS

Model number

B733

Defend Grade

IP65

Keys

9 keys

Vandal resistant

IK09

Electrical lifetime

> 5 years

Contact resistance

200 ohm (max)

Current Rating

appr. 30mA

Power supply

+ 5V +/- 5%

G.W.

0.25kg approx

Dimensions

168mm *45mm*5.5mm

Frame/keys materials

Stainless steel

life span

≥2 million

Elasticity of key

2.5-3N

Key travel

≤100Ω

Atmospheric pressure

60-106Kpa

Operate Temperature

-40℃~+85℃

Travel distance

0.45mm

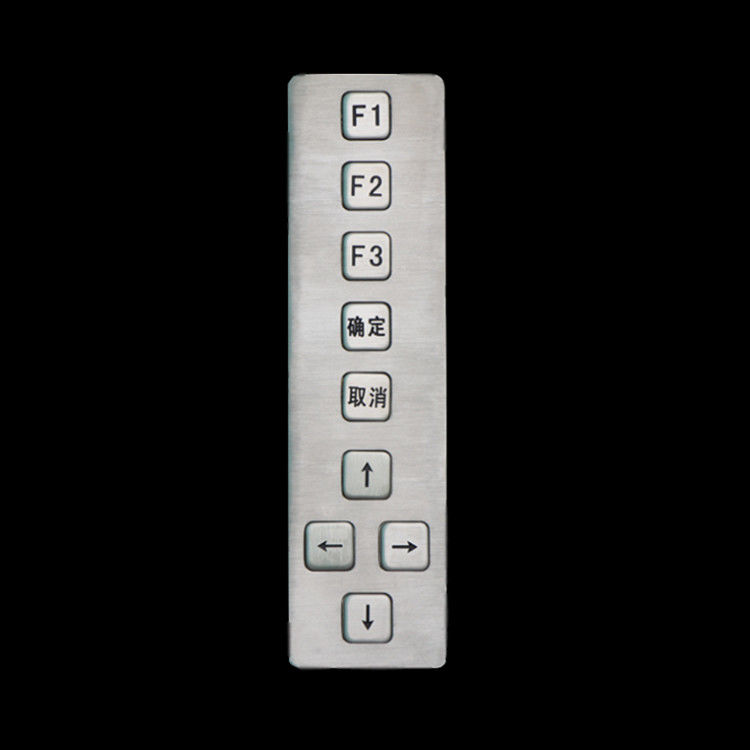

Industrial Kiosk Keypad , Stainless Steel Automatic Gate Keypad Mirror Polished 0

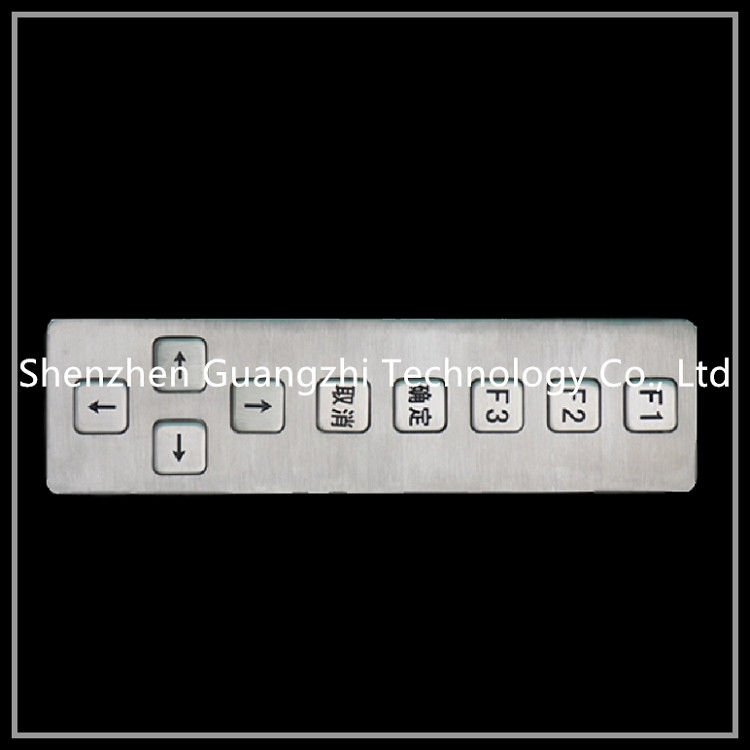

Industrial Kiosk Keypad , Stainless Steel Automatic Gate Keypad Mirror Polished 1
