Metal Backlit Numeric Keypad With Display Dustproof For Fuel Dispenser

Basic Information
Place of Origin: SZENZHEN CHINA
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP65
Model Number: GZ-Z010090
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20work days
Payment Terms: T/T
Supply Ability: 10000
Detail Information
Connection: USB,PS2,R232,8P Material: Stainless Steel
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Size: 155*110mm
Certification: FDA, SGS, ROHS, LFGB, REACH Hardness: 30~90 Shore A
Connector: 2.54mm Female Connector, 8 Pin
Highlight:

backlit numeric keyboard

,

led backlit keyboard


Product Description



Metal keyboard with display, fuel dispenser, charging inflator input number keyboard

Product Name:Backlit Numeric Keypad

Product P/N:GZ-Z010090

Product Size:155*110mm

Size:

155x110 mm (front panel)

Main features:

Specially designed for harsh environment, it adopts brushed stainless steel material, special waterproof design, protection grade IP65, with good waterproof, dustproof and vandalism performance, which is a good choice for public use or harsh environment.

Gold PCB contacts on the gold dome

Matrix output with controller

Strengthen printed circuit board to ensure mechanical stability

Laser engraved characters, durable

Any language is free

Material: stainless steel (front panel), aluminum alloy (lining plate)

Key stroke: 0.4mm

Key switch life: more than 10 million operations

Key switch technology: metal dome and solid PCB

Supply voltage: + 5V DC + / - 5%

Communication interface: matrix port (optional)

Protection grade: IP65 (front panel)

Operating temperature: - 40 ~ + 70

Storage temperature: - 50 + 80

CE FCC RoHS compliant

Support DOS / Windows95 / 98 / NT / me / 2000 / 2003 / XP / Vista / 7, 8, 10 Linux, MAC, etc

Mean time between failures > 50000 hours

MTTR<30min

Application:

The keyboard is mainly used for unattended Internet terminals and information kiosks in public areas, bank self-service terminals, automatic ticket machines, gas stations, automatic teller machines, Internet public telephones, industrial consoles, etc

Lead Time



Quantity(Piece) 1 - 500 >500
Est. Time(days) 15 To be negotiated



Metal Backlit Numeric Keypad With Display Dustproof For Fuel Dispenser 0

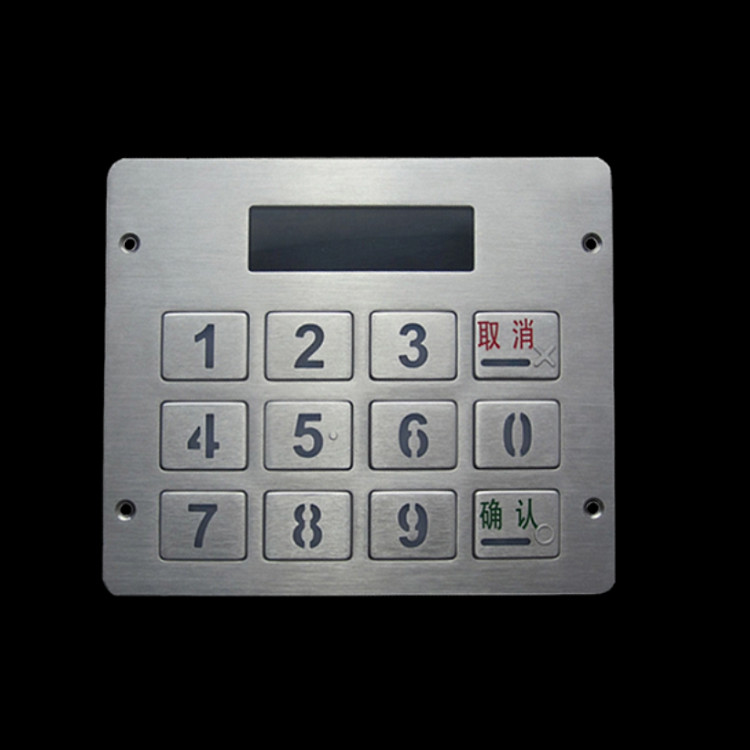

Metal Backlit Numeric Keypad With Display Dustproof For Fuel Dispenser 1
