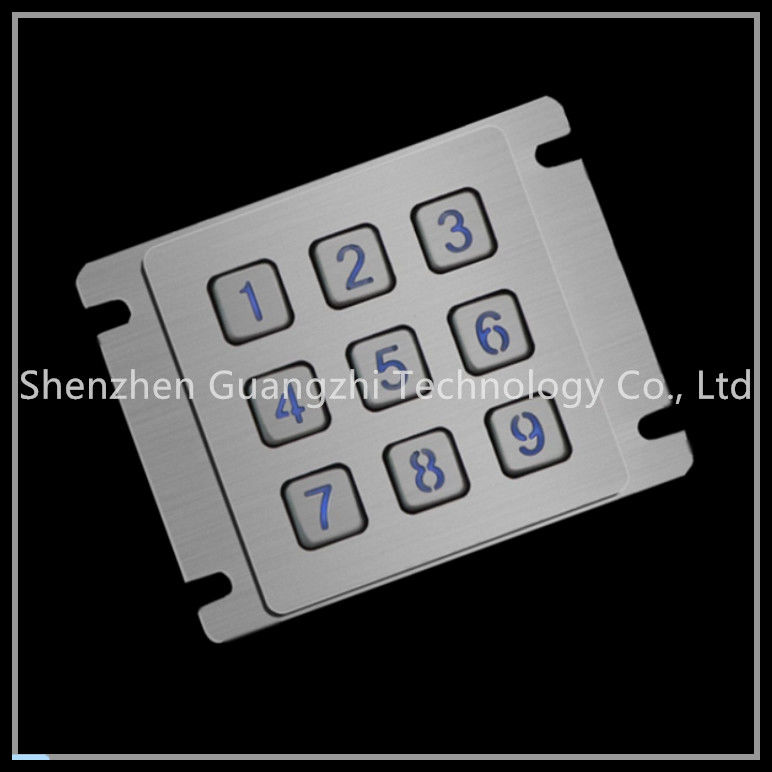

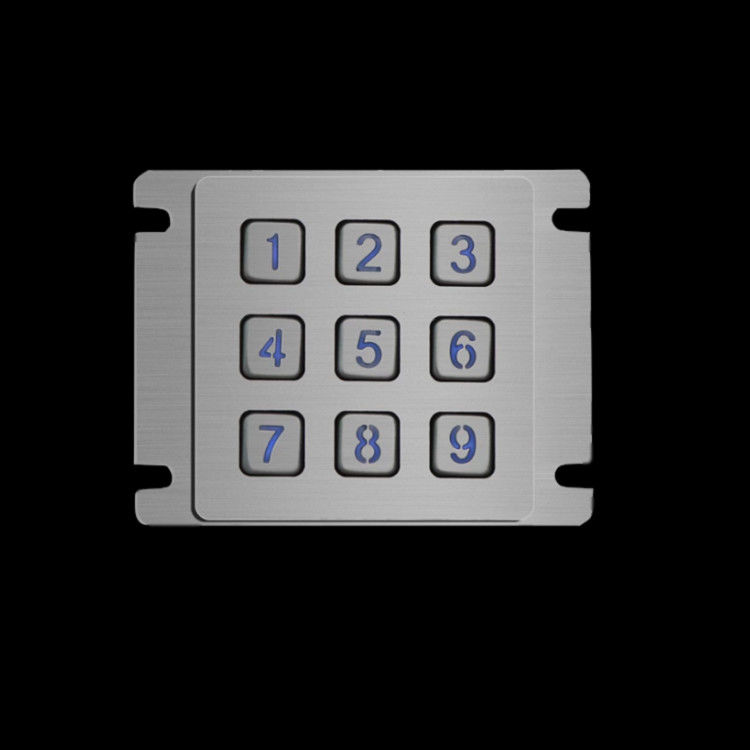

Watertight Illuminated Keyboard , 12 Keys Metal 3x4 Keyboard With Usb Interface

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	guangzhi
Certification:	CE、FCC、RoHS、IP65
Model Number:	GZ-Z010080-001

Minimum Order Quantity:	1pcs
Price:	To be quoted
Packaging Details:	Individual product package size:23515050mm, Carton Size:482320275;
Delivery Time:	1-20 work days
Payment Terms:	T/T,Paypal
Supply Ability:	100000pcs

Get Best Price Contact Now

Detail Information

Application:	Self-service Equipment	Connection:	USB,6P
Material:	Stainless Steel 304	Keypad Button Material:	Metal
Certification:	FDA, SGS, ROHS, LFGB, REACH	Connector:	2.54mm Female Connector, 8 Pin
Highlight:	backlit numeric keyboard , led backlit keyboard

Product Description

Waterproof illuminated numerical keyboard 3x4 12 keys usb metal keypad

Name: Watertight Illuminated Keyboard , 12 Keys Metal 3x4 Keyboard With Usb Interface
Brand: shenzhen guangzhi technology co., ltd.
SKU: GZ-Z010080-001
Availability: InStock

Product Name:Backlight metal keypad

Product P/N:GZ-Z010080-001

Product dimension:66*64.5mm

Descriptions:

1. 9 keys IP65 dynamic compact format vandal proof ,Inox industrial numeric keypad with industrial PCB electronics.

2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely

good tactile feeling for fast and accurate data input without any noise.

3. Ease of installation and maintenance.

4.Colors of led can be customized according to customer's requirements. Blue,yellow,green and red are available.

Special Features:

1. Specially designed keyboards meet the highest demands with regard to design, functionality,

longevity and high protection level.

2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under

extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Applications:

A unsupervised or semi -supervised positions of varied access control systems,security system, household applications.

Electrical parameters:

Working Voltage	DC +5V +/-5%
Working Current	20mA
Expected Service	>5 years
Button switching technology	silica gel conductive carbon particles
Interface technology	USB, 6P cable
Operating system	DOS/Windows /Vista, Linux, Unix, Mac osx, Android, apple

Environmental adaptability:

1. Working temperature: -20 ° Cto + 60 ° C

2. Storage temperature: -30 ° Cto + 70 ° C

3. Relative humidity: 30-90%

Watertight Illuminated Keyboard , 12 Keys Metal 3x4 Keyboard With Usb Interface 0

Watertight Illuminated Keyboard , 12 Keys Metal 3x4 Keyboard With Usb Interface 1

Tag:

Watertight Illuminated Keyboard , 12 Keys Metal 3x4 Keyboard With Usb Interface

backlit numeric keyboard

led backlit keyboard

Waterproof illuminated numerical keyboard 3x4 12 keys usb metal keypad

Product Name:Backlight metal keypad

Product P/N:GZ-Z010080-001

Product dimension:66*64.5mm

Descriptions:

1. 9 keys IP65 dynamic compact format vandal proof ,Inox industrial numeric keypad with industrial PCB electronics.

2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely

good tactile feeling for fast and accurate data input without any noise.

3. Ease of installation and maintenance.

4.Colors of led can be customized according to customer's requirements. Blue,yellow,green and red are available.

Special Features:

1. Specially designed keyboards meet the highest demands with regard to design, functionality,

longevity and high protection level.

2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under

extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Applications:

A unsupervised or semi -supervised positions of varied access control systems,security system, household applications.

Electrical parameters:

Working Voltage

DC +5V +/-5%

Working Current

20mA

Expected Service

>5 years

Button switching technology

silica gel conductive carbon particles

Interface technology

USB, 6P cable

Operating system

DOS/Windows /Vista, Linux, Unix, Mac osx, Android, apple

Environmental adaptability:

1. Working temperature: -20 ° Cto + 60 ° C

2. Storage temperature: -30 ° Cto + 70 ° C

3. Relative humidity: 30-90%
