Led Backlight 16 Button Keypad 4x4 Matrix Type For Outdoor Industrial Equipment

Basic Information
Place of Origin: SHENZHEN CHINA
Brand Name: szguangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-Z010050
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T
Supply Ability: 1000000pcs
Detail Information
Application: Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller Product Name: Keypad, Stainless Steel ATM Keyboard, Mini Usb Wired 19 Key Digital Numeric Keypad, ATM PINPAD, Custom Numeric Keypad
Warranty: 1YEAR Weight: 1KG
Certification: FDA, SGS, ROHS, LFGB, REACH Color: Biue
Highlight:

backlit numeric keyboard

,

led backlit keyboard


Product Description

Outdoor waterproof 16 key, 4X4 matrix ATM, information kiosk access CNC, industrial LED backlight car washer metal digital keyboard

Product name:Backlit Numeric Keypad

Model: GZ-Z010050

Product specification:120*98mm

Feature
1.Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment
2.Reinforced PCB to guarantee the mechanical stability
3.Simple installation,easy maintenance and durable service
4.Keys are good touch feeling and accurate date input without any noise
5.Font and pattern can be customized according to customer requirements
6.Very strict ex-factory inspection standards

Technical Spects
Model
GZ-Z010050 Backlit


MAIN FEATURE
High quality brushed Stainless Steel panel
Dustproof, IP65 Waterproof, Shake-proof, Pickproof, Drill-proof, Vandal-proof
Easily mounting into enclosure or panel.





MECHANICAL DATA
Switching material: Carbon-on-Gold
Actuation Force: 1.2N +/-0.1N (pressure point)
Lettering: laser engraving, or raised letters.
Key Travel:0.4mm
Front panel: brushed stainless steel
Actuator/keys materials: stainless steel



Environment
Operating temperature:-40°C to +70°C
Storage temperature:-50°C to +80°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.



Reliablity
Protection Level: IP65(front panel)
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
Dimensions
G.W. 0.25KGs
Power supply
5.0V DC.
Power Consumption
Under 150mW for operation, under 50.0mW for non-operation
Electrical lifetime
Electrical lifetime: > 5 years
Application
Widely used in ATM, self-service terminal,info-kiosk access, commerical kiosk

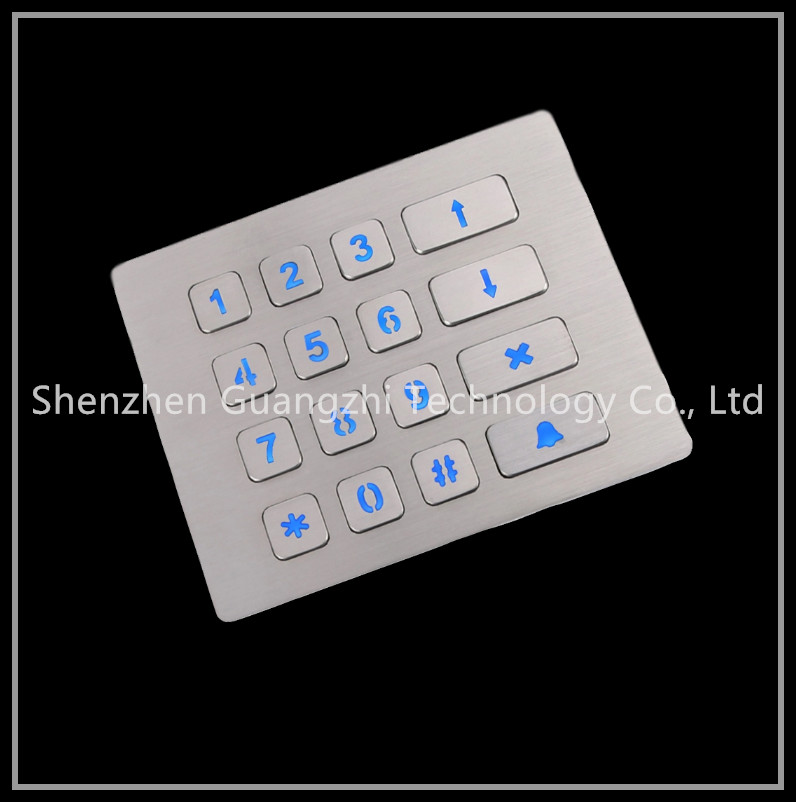

Led Backlight 16 Button Keypad 4x4 Matrix Type For Outdoor Industrial Equipment 0

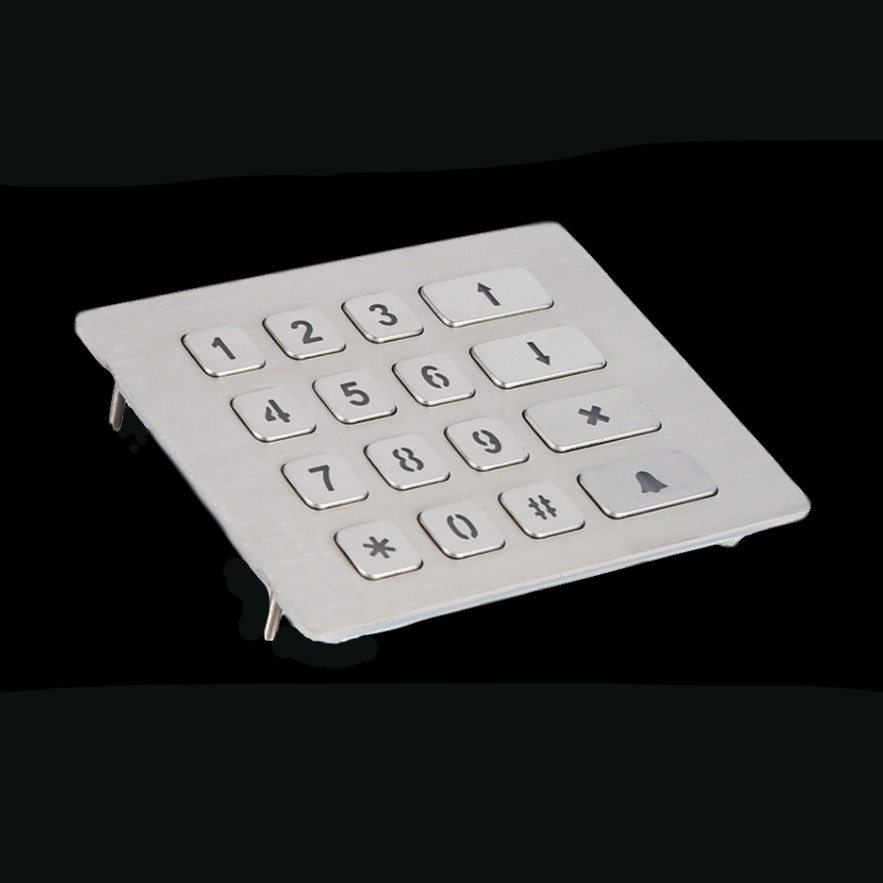

Led Backlight 16 Button Keypad 4x4 Matrix Type For Outdoor Industrial Equipment 1
