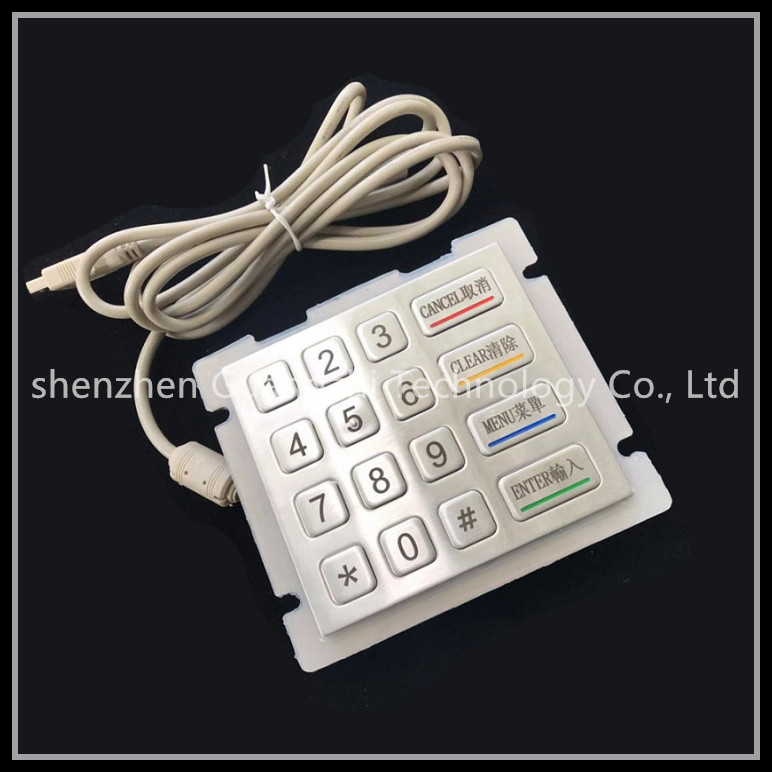

Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-B023013-003
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB,PS2,R232,8P
Material: Stainless Steel Keypad Button Material: Stainless Steel
Type: Meet Customer's Demand, Manufactuer, Rugged Numeric Keypad, Usb Keypad, Waterproof Membrane Printing: Digital Printing OR Laser Marking
Highlight:

atm machine keyboard

,

kiosk metal keyboard


Product Description

16 key access metal keyboard, waterproof industrial stainless steel keypad

Product Name: IP67 metal keypad

Product P/N:GZ-B023013-003

Product Size: 100*90mm



Product Application:

It mainly applied to various kinds of place of no regulation or semi-regulatio information terminal; for example internet terminal University, Market Hotel, Bank,Airport,Station,and another information station of public place,Automatic ticket rendor,Gas station,Automatic Teller Machine(ATM),Public telephone ect;

Mainly Features:

1. Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.
2. It is installed by silica gel and the waterproof rating is IP67.
3. The keyboard after installation is beautiful and plug and play.
4. The metal keyboard surface button is very good for preventing smashing, not easy to bend and detach, so as to prevent the button from falling off and being damaged.
5. Customize any key surface in multiple languages ​​to suit different countries and various custom styles.
6. Easy to install, provide USB interface mode to connect the host for keyboard operation.
Mechanical Specifications:
1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Square Key with character of laser engraving and corrosion.
3. Key Size: 13.8mm*13.8mm,13.8*27.8mm;
4. Key`s travel :0.5mm
5. Lifetime of the key: Operating more than 2Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing-brush SUS304 stainless steel with 1.5 thickness.

Environmental adaptation:

Operating Temperature

-20℃to+60℃

Storage Temperature

-30℃to+70℃

Relative Humidity

30-90% without Condensation dew

Atmospheric Pressure

50-100Kpa

IP Level

IP67( static state ) / IP (Dynamic state)

Nstallation:1)CAD
Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 0

2)Matrix Graph:

Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 1

3)Interface definition:
Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 2


4)Frontface effect of the product

Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 3





Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 4





Easy Installation Metal Numeric Keypad Ip67 Waterproof Rating Unbreakable 5
