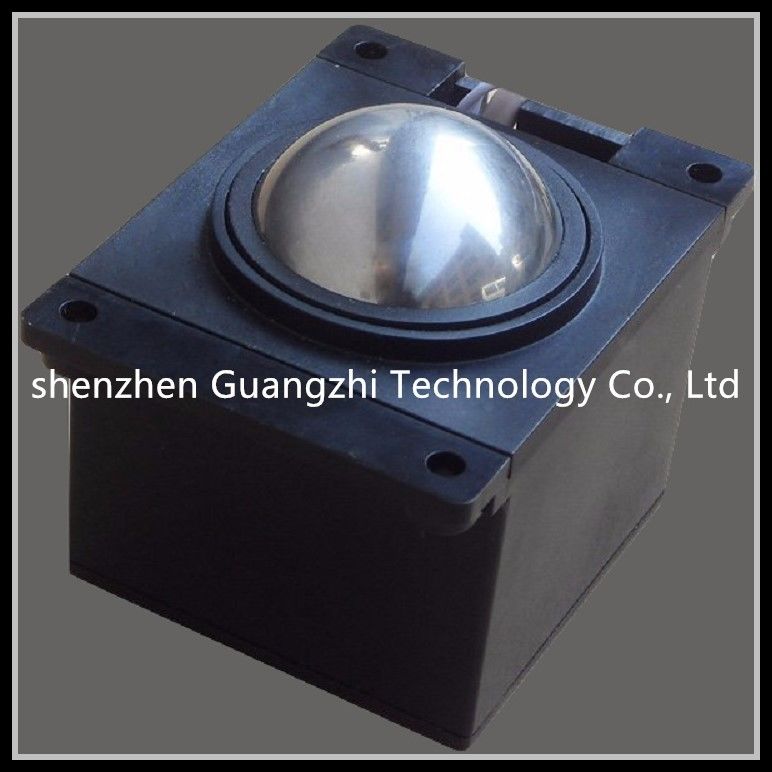

38mm Metal Trackball Pointing Device High Sensitivity For Medical Equipment

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-D003013
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB Or PS2
Material: Stainless Steel Sphere Volume: 50mm
Protection Level: IP65 Key Lifespan: >3 Million Pressing Times
Highlight:

industrial trackball mouse

,

industrial pointing device


Product Description

38mm high sensitivity metal trackball module mouse self-service terminal medical equipment metal keyboard

Prod uct Name:Metal mouse positioner

Product P/N:GZ-D003013

Product specification:54*74*46.1mm

Sphere diameter:38mm

Product Name: 38mm Optical Trackball Module with High-sensitivity



Product Keyword: Metal Optical trackball



Listing Description: 38mm Optical Trackball Module with High-sensitivity

1,Seal Protection level: IP65

2,Durable

3,Interface: USB



Detailed Description:



38mm Optical Trackball Module with High-sensitivity



1,Optical trackball
2,Easy to imbed in custom case.
3,Dust-proof and liquid-proof, IP65 compliance when properly installation.
4,Specially designed to operate in harsh environments,making them ideal for web payphones, kiosks and other demanding applications
5,Compatible with WINDOWS98/ME/2000/XP/Win 7/Linux
6,Interface can be USB or PS/2

Technical Specification
Material
Trackball 304 stainless steel

Electrical Data
Power supply voltage DC 5 V ± 5%
Electric current 10 mA
Interface USB
Certification CE,FCC
Environmental Characteristics
Operating temperature -20º C to + 60º C
Storage temperature - 40°C to + 80°C
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40°C 21 days, IEC 60512-6
Dry heat test at + 85°C 10 days, IEC 60512-6
Lifetime (cycles) Min 10 millions actuations
Sealing protection IP65

Reliability
MTBF >20000h
MTTR <30min
Compatible Operation System
USB Microsoft® Windows 7/Vista®/XP/2000/ME/98
Weight and Dimension
Gross Weight 0.38kg
Dimension 55.8 x 73.7 mm(LxW)(Front panel)

Environmental adaptability:
1. Operating temperature: - 10 ℃ to + 50 ℃
2. Storage temperature: - 30 ℃ to + 80 ℃
3. Relative humidity: 30-95% (no condensation)
4. Atmospheric pressure: 50-110kpa
5. Salt spray test: 96 hours, iec60512-6
6. 40 ℃ high tide humidity test: 21 days, iec60512-6
7. High drying test at 85 ℃: 10 days, iec60512-6









38mm Metal Trackball Pointing Device High Sensitivity For Medical Equipment 0
