Rain proof IP67 outdoor stainless steel keyboard with trackball,

Product name:metal PC keyboard

Model: GZ-C002032

Size:382*110mm

Product description: Anti-riot stainless steel keyboard, 68 keys, Compact layout of buttons, 2.0mm long button stroke, Full stainless steel panel and button design, Precise and accurate mold matching, Beautiful surface treatment. Mainly used in various unsupervised Or information terminals in semi-regulated places, Such as Internet terminals, Universities, Shopping malls, Hotels, Banks, Airports, Stations and other public places kiosks, Ticket vending machines, Gas stations, Bank tellers (Automatic deposit / Withdrawal machines), Public Telephone, Etc.

Mechanical parameters:

1. Button: 68 buttons, imported printed brushed SUS304 stainless steel.

2. Button design: square convex button, or square flat button, laser engraving and then etching patterns and characters, and filling in high quality and durable environmentally friendly imported ink

3. Button size: ordinary buttons: 14mm * 14mm, 14 * 28mm, 14 * 90mm

4. Button stroke: 2.0mm

5. Key life: operate more than 5 million times per key.

6. Button strength: 1.2N +/- 0.1N (contact force)

7. Mutual capacitance sensing:

X/Y axis position detection resolution: 40counts/mm

Trackball resolution: X>200dpi; Y>190dpi (optional mechanical or photo sphere)

x/y position report: relative

Sensing range: 65*49mm

Touch tracking speed: >1.016 m / sec

Power supply voltage: 5V ± 0.25V

Rated current: 17 mA

8. Rear panel: 3.0mm thick brushed aluminum plate

9. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick

10. Weight: 1.5kg

Environmental adaptability:

1. Working temperature: 0°Cto+60°C

2. Storage temperature: -25°Cto+70°C

3. Relative humidity: 30-90% (no condensation)

4. Atmospheric pressure: 60-106Kpa

5. Salt spray test: 96 hours, IEC60512-6

6.40 °C high humidity test: 21 days, IEC60512-6

7. 85 ° C high drying test: 10 days, IEC60512-6

reliability:

1. Dustproof and waterproof: IP65 (surface)

2. Riot rating: IK09

3. Key life 2 million operations / per key

4. Average failure time > 50,000 hours

5. Average repair time <30 minutes

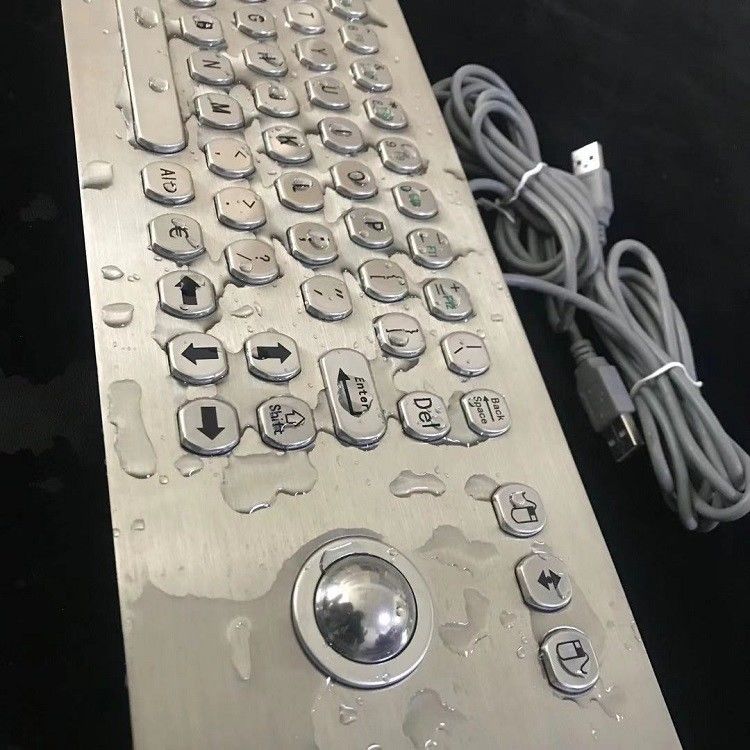

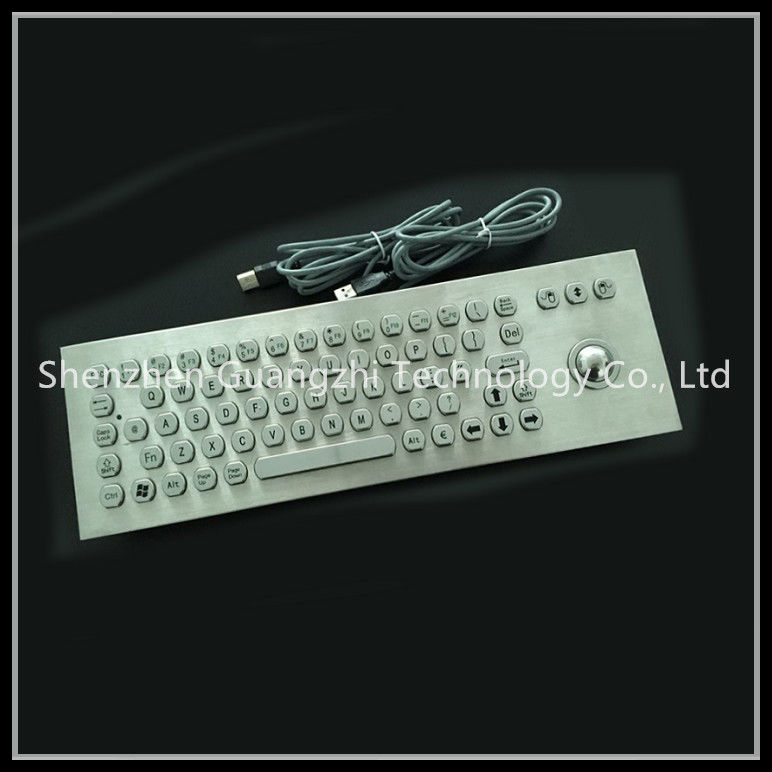

Front face effect of the product:
