| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | guangzhi |
| Certification: | CE、FCC、RoHS |
| Model Number: | GZ-A007010 |
| Minimum Order Quantity: | 1pcs |
| Price: | To be quoted |
| Packaging Details: | Individual product package size:235*150*50mm, Carton Size:482*320*275; |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100000pcs |
| Application: | ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. | Connection: | USB Or PS2 |
|---|---|---|---|
| Material: | Stainless Steel | Warranty: | 1 Year |
| Life Cycle: | >5 Million Operations | Protection Level: | IP67 |
| Highlight: | keyboard function keys,keypad function keys |
||

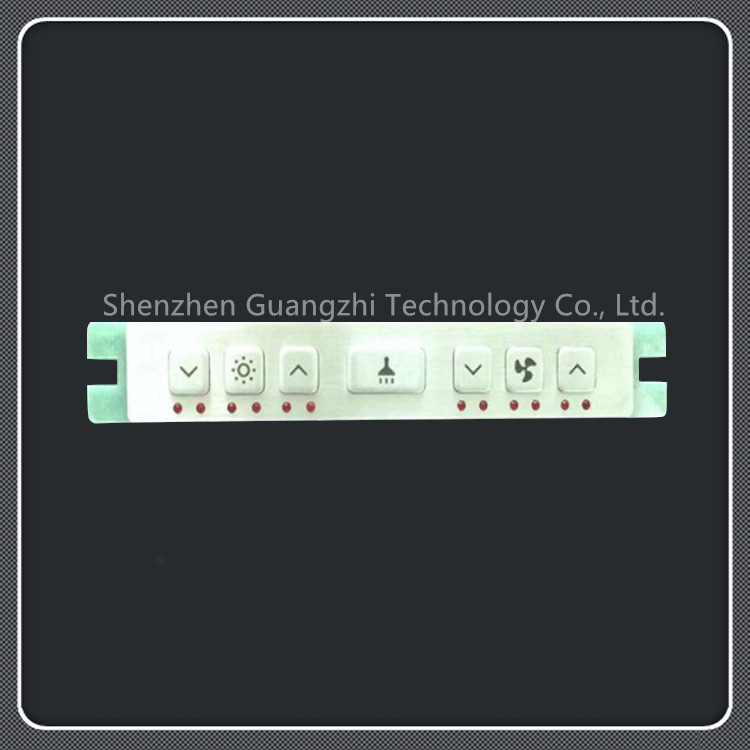

Prod uct Name: |
Metal Function Keypad |
Product model: |
GZ-A007010 |
Panel (w × h): |
180x30 mm |
Main features:
System requirements: Win XP / 7 / 8 / 10
Conform to ISO / iec9995 and GB / t14081 standards;
Actuator / key material: 304 35; (RoHS) stainless steel;
Dustproof, waterproof, shockproof, anticorrosive, drilling proof and explosion-proof;
Contact material: carbon / gold;
Protection class: IEC / DIN / en / 60529: IP65;
IK protection class: DIN EN 50102: ik07;
Gross weight: 0.3KG;
Application:
ATMs, kiosks, industrial controls, medical devices
Institutional characteristics:
Switch life: more than 3 million times;
Key stroke: 1.5mm;
Service life: > 10 years;
Driving force: 1n
Power processing: less than 1 watt (dynamic), less than 200 Watt (static)
Environmental adaptability:
Protection grade: IP65 (static) / IP54 (dynamic);
Working temperature: - 25 ℃ ~ + 45 ℃ relative humidity: 30-90%;
Storage temperature: - 35 ℃ ~ + 55 ℃; relative humidity: 20-95%;
Air pressure: 60 ~ 106kpa
Approval:
Pass the certification of central bank card test center;
CE,RoHS,FCC
Use
ATM, self service kiosk, access control, medical equipment
Minimum order quantity
No minimum order limit, 1 available
Material Science
Stainless steel
Sample delivery time
2-3 working days
Key life
