Industrial Metal Embedded Keyboard 16 Buttons Type , Custom Font Keyboard

Basic Information
Place of Origin: SHENZHEN CHINA
Brand Name: szguangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-B012013-001
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 1-20 work days
Payment Terms: T/T
Supply Ability: 1000000pcs
Detail Information
Application: Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller Product Name: Keypad, Stainless Steel ATM Keyboard, Mini Usb Wired 19 Key Digital Numeric Keypad, ATM PINPAD, Custom Numeric Keypad
Warranty: 1YEAR Type: Meet Customer's Demand, Numeric Keypad
Certification: FDA, SGS, ROHS, LFGB, REACH Connector: 2.54mm Female Connector, 8 Pin
Highlight:

embedded keyboard

,

industrial metal keyboard


Product Description

16 key embedded industrial metal keyboard, button font can be customized

Prod uct Name:Embedded Numeric Keypad
Product Size: 100*100mm

Product P/N:GZ-B012013-001

APPLICATION
self-service library
self-service kiosk CNC machine
household applications oiling machine charge spot
industrial telephone ATM access control
ticket machine vending machine medical facility
security system fingerprint attendance machine



Mechanical Specifications:

1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.

2. Design of the key: Square Key with character of laser engraving and corrosion.

3. Key Size: 13.8mm*13.8mm,13.8*27.8mm;

4. Key`s travel :0.5mm





PARAMETERS

Defend Grade

IP65

Keys

16 keys

Vandal resistant

IK09

Electrical lifetime

> 5 years

Contact resistance

200 ohm (max)

Current Rating

appr. 30mA

Power supply

+ 5V +/- 5%

Led color

option

G.W.

1kg approx

Frame/keys materials

Stainless steel

life span

≥2 million

Elasticity of key

2.5-3N

Key travel

≤100Ω

Atmospheric pressure

60-106Kpa

Operate Temperature

-40℃~+85℃

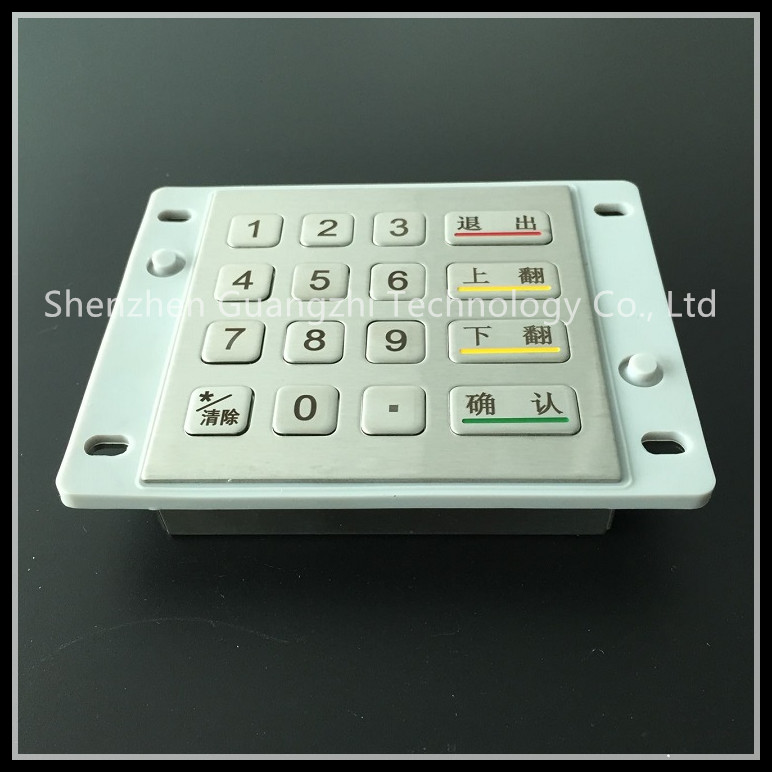

Industrial Metal Embedded Keyboard 16 Buttons Type , Custom Font Keyboard 0

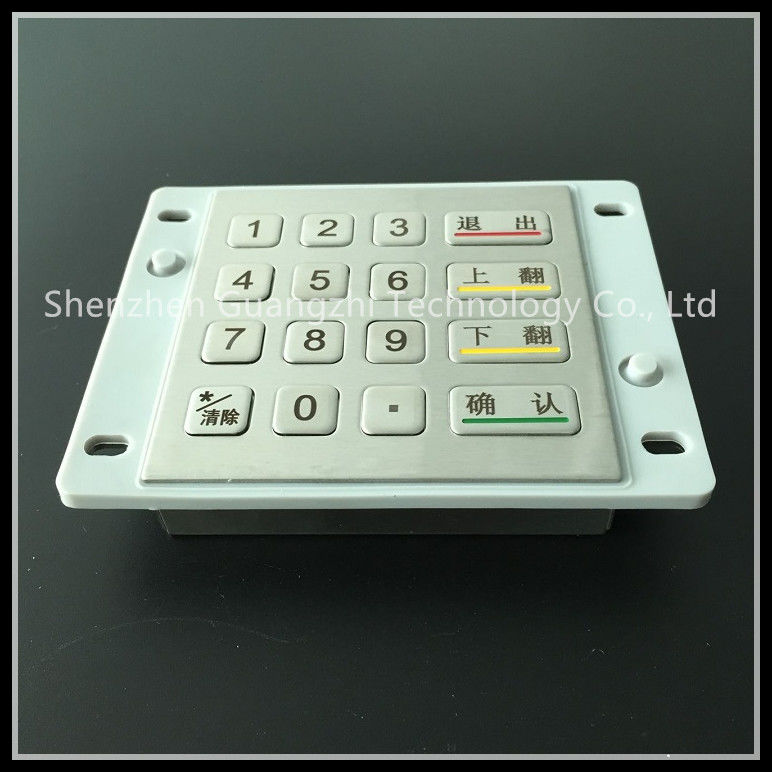

Industrial Metal Embedded Keyboard 16 Buttons Type , Custom Font Keyboard 1





Industrial Metal Embedded Keyboard 16 Buttons Type , Custom Font Keyboard 2
