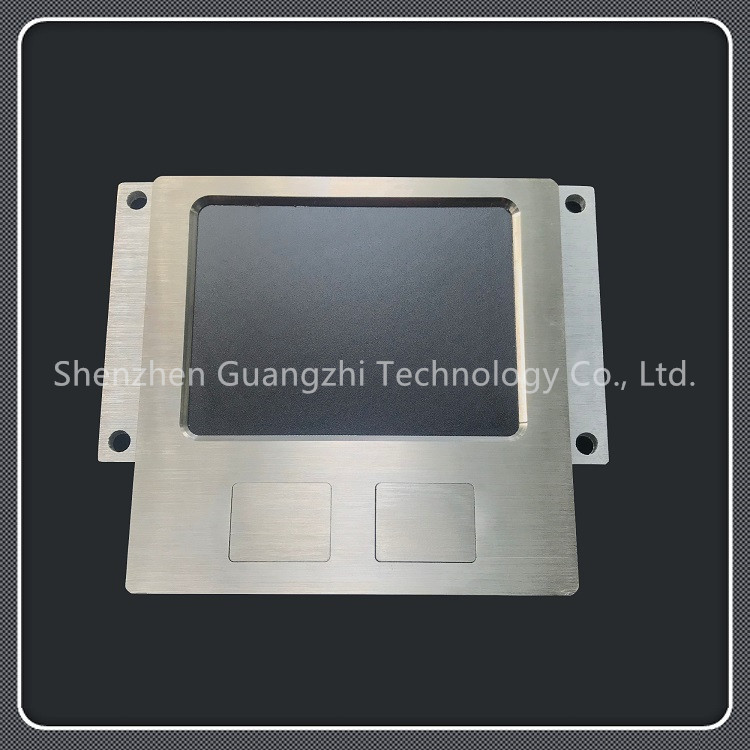

Stainless Steel Waterproof Touchpad , Industrial Touchpad Aluminum Alloy Mounting Rack

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS
Model Number: GZ-E001013
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB Or PS2
Material: Stainless Steel Protection Level: IP65
Key Lifespan: >3 Million Pressing Times Vertical Compressive Strength: 300N (30KG)
Highlight:

industrial pointing device

,

stainless steel trackball


Product Description

Stainless steel metal touch screen, emc standard industrial mouse

Prod uct Name:Metal Touch Screen

Product P/N:GZ-E001013

Product Size:  80.0mm x 80.0mm x 15.0mm (L x W x H)

TECHNICAL SPECIFICATION:

ITEM

SPECIFICATION

Mechanical

Front Plate

Quality brushed stainless steel

Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer

Validated touch width

46.50mm (max)

Validated touch length

62.50mm (max)

Mounting Rack

Aluminum alloy

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Touchpad lifespan

> 10 Mio times

Dimensions

Touchpad: 65.0mm x 49.0mm; Totally: 105.0mm x 134.0mm x 55.0mm (L x W x H)

Interface

PS2 and USB both available

Electrical

Power supply

5V DC+ 10%,

Work current

4.0 mA (normal)

X/Y position sensing resolution:

1000 points/inch (40 points/mm)

X/Y position reporting:

Relative

Tracking speed:

Maximum 1,016 m/sec

Protection level:

IP65

Static Release:

15 KV (front panel)

EMC Standard:

EN55022(B)

Environmental

Operating temperature:

-20°C to +60°C

Storage temperature:

- 40°C to + 70°C

Operating RH:

10%-95%

Atmospheric pressure:

60-106Kpa

Reliability

MTBF

>50000h

MTTR

< 30min

Touchpad Lifespan

>10 million actuations

OS

OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

Stainless Steel Waterproof Touchpad , Industrial Touchpad Aluminum Alloy Mounting Rack 0Stainless Steel Waterproof Touchpad , Industrial Touchpad Aluminum Alloy Mounting Rack 1Stainless Steel Waterproof Touchpad , Industrial Touchpad Aluminum Alloy Mounting Rack 2









Stainless Steel Waterproof Touchpad , Industrial Touchpad Aluminum Alloy Mounting Rack 3
