Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP65
Model Number: GZ-B017010
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T,Paypal
Supply Ability: 100000pcs
Detail Information
Application: Self-service Equipment Connection: USB,9P,2*5P
Material: Stainless Steel 304 Certification: FDA, SGS, ROHS, LFGB, REACH
Connector: 2.54mm Female Connector, 8 Pin Usage: Door, Car, Window, Remote Control, Numeric Equipment
Highlight:

wired backlit keyboard

,

led backlit keyboard


Product Description

12 key self-service stainless steel backlit metal keyboard, USB interface, replaceable font

Product Name:Backlight metal keypad

Product P/N:GZ-B017010

Product dimension:100*94mm



Applications:

Mainly used in various unsupervised or semi-regulated information terminals, such as Internet terminals, universities, shopping malls, hotels, banks, airports, stations and other public places kiosks, ticket vending machines, gas stations, bank tellers ( Automatic deposit/detail machine), public telephone, etc.

main feature:

1. LED font light, environmental protection, energy saving, long life of more than 30,000 hours, light is dark or more convenient to use at night.

2. Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.

3. IP65 waterproof and dustproof protection level design, the keyboard after installation can achieve the effect of surface waterproof and dustproof.

4. The keyboard adopts a long-stroke convex button with good tactile visual experience, which can be used more clearly in dimly lit environments, and realizes user-free and fast and accurate data input without noise.

5. The metal keyboard surface buttons are very good for preventing smashing, and are not easy to bend and detach, thus preventing the keys from falling off and being damaged.

6. Customize any key surface in multiple languages to suit different countries and various custom styles.

7. Easy to install, provide USB interface to connect to the host for keyboard operation.

Mechanical parameters:

1. Button: 12 buttons, imported printed brushed SUS304 stainless steel;

2. Button design: square convex button, laser engraved and etched out hollow patterns and characters;

3. The size of the button: ordinary button: 14.7mm * 21.7mm;

4. Button stroke: 2.0mm;

5. Button life: operate more than 2 million times per key;

6. Button strength: 1.2N +/- 0.1N (contact force);

7. Front panel: imported printed brushed SUS304 stainless steel, 2.0mm thick;

Electrical parameters:

Working Voltage

DC +5V +/-5%

Working Current

20mA

Expected Service

>5 years

Button switching technology

silica gel conductive carbon particles

Interface technology

USB, 2*5P cable

Operating system

DOS/Windows /Vista, Linux, Unix, Mac osx, Android, apple

Environmental adaptability:

1. Working temperature: -20 ° Cto + 60 ° C

2. Storage temperature: -30 ° Cto + 70 ° C

3. Relative humidity: 30-90%

Installation method:1)Frontal drawing

Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface 0

2):Back drawing

Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface 1

3):Matrix diagram

Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface 2

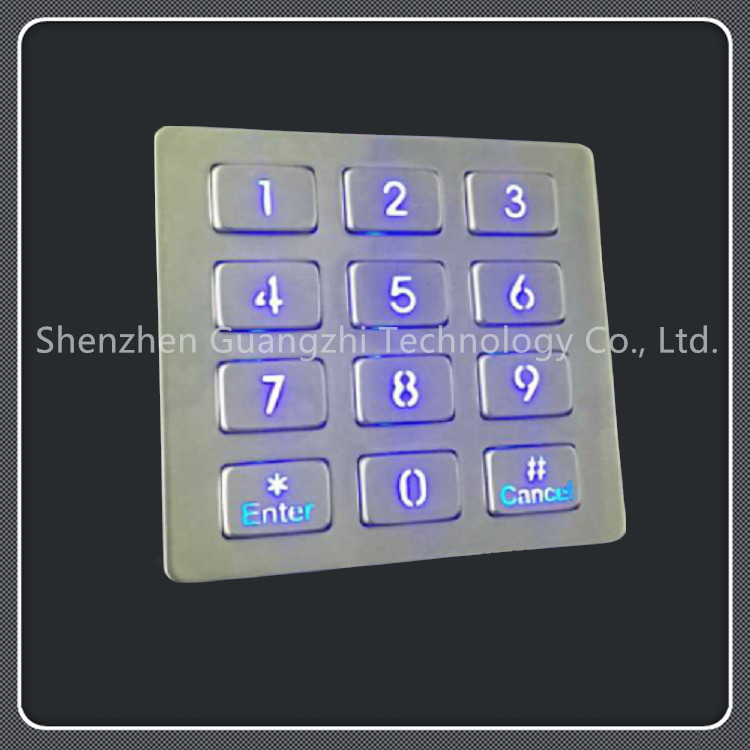

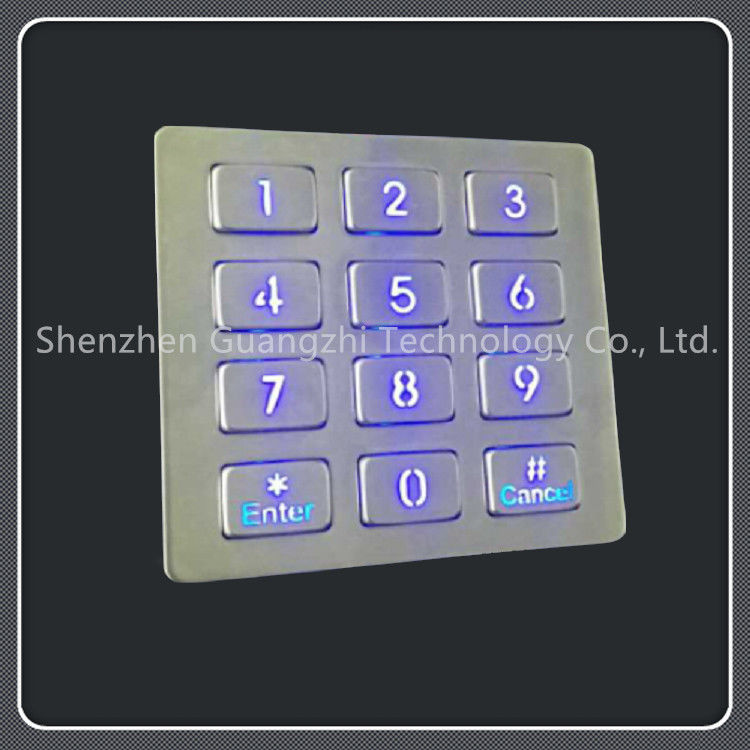

4)Product renderings

Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface 3

Stainless Steel Backlit Numeric Keypad 12 Buttons Type With Usb Interface 4
