4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof

Basic Information
Place of Origin: Shenzhen,China
Brand Name: guangzhi
Certification: CE、FCC、RoHS、IP67
Model Number: GZ-B023013
Minimum Order Quantity: 1pcs
Price: To be quoted
Packaging Details: Individual product package size:235*150*50mm, Carton Size:482*320*275;
Delivery Time: 10-20 work days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs
Detail Information
Application: ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc. Connection: USB,PS2,R232,8P
Material: Stainless Steel KEY: 16
Colour: Stainless Steel Weight: 1KG
Highlight:

custom usb keypad

,

custom usb keyboard


Product Description

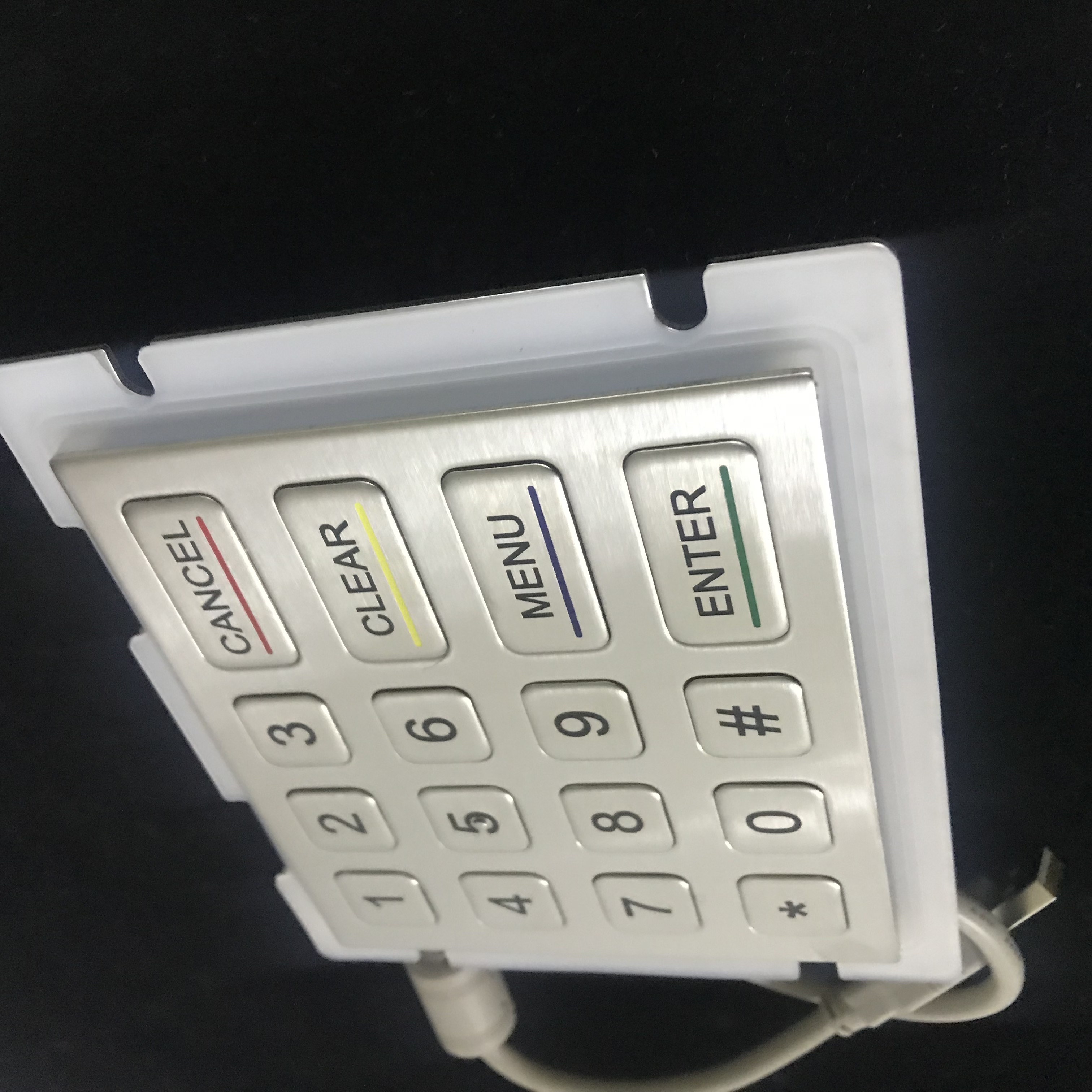

Product Name: IP67 metal keypad

Product P/N:GZ-B023013

Product Size: 100*90mm

Product Description:Waterproof stainless steel keyboard, numeric keys and six function keys, compact layout of buttons, 0.5mm long button stroke, installation method from inside to outside, the whole thickness is: 30.6mm, with full waterproof silicone design, waterproof grade IP67, stainless steel Panel and laser engraved button design, the mold is matched with precise and accurate, and the surface treatment is beautiful and generous;

Nstallation:1)CAD
4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 0


2)Matrix Graph:

4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 1

3)Interface definition:
4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 2



4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 3

4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 4

4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 5

4 X 4 Layout Custom Usb Keyboard , Ip67 Class 16 Key Keypad Waterproof 6


5)Product Application:

It mainly applied to various kinds of place of no regulation or semi-regulatio information terminal; for example internet terminal University, Market Hotel, Bank,Airport,Station,and another information station of public place,Automatic ticket rendor,Gas station,Automatic Teller Machine(ATM),Public telephone ect;

6) Mainly Features:

1. Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.
2. It is installed by silica gel and the waterproof rating is IP67.
3. The keyboard after installation is beautiful and plug and play.
4. The metal keyboard surface button is very good for preventing smashing, not easy to bend and detach, so as to prevent the button from falling off and being damaged.
5. Customize any key surface in multiple languages ​​to suit different countries and various custom styles.
6. Easy to install, provide USB interface mode to connect the host for keyboard operation.
7) Mechanical Specifications:
1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Square Key with character of laser engraving and corrosion.
3. Key Size: 13.8mm*13.8mm,13.8*27.8mm
4. Key`s travel :0.5mm
5. Lifetime of the key: Operating more than 2Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing-brush SUS304 stainless steel with 1.5 thickness.
8) Electric parameter:
1. Operating current: Direct current+5V/-5%
2 working current:20mA
3 Expected life-time:>5yer
4. Button switch technology: Rubber key
5. Interface Technology:USB,PS2,R232,8PIN
6. Operating System:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
9) Environmental adaptation:


Operating Temperature

-20℃to+60℃

Storage Temperature

-30℃to+70℃

Relative Humidity

30-90% without Condensation dew

Atmospheric Pressure

50-100Kpa

IP Level

IP67( static state ) / IP (Dynamic state)
