Detail Information

Application:	ATM, Self-service Equipment, Game Consoles, Access Control, Medical Equipment, Military Equipment, Marine Equipment, Mine Equipment, Etc.	Connection:	USB,PS2,R232,8P
Material:	Stainless Steel	Product Name:	Stainless Steel ATM Keyboard
Warranty:	1 Year	Weight:	1.0 KG
Highlight:	industrial metal keyboard , kiosk metal keyboard

Product Description

Product Number	GZ-B001023
Key	16 keys
Key Travel	0.5mm
Installation Size	100*100mm(front Panel)
Product Weight	0.5KG
Interface Mode	USB , PS2, R232, 8P Matrix Interface
Installation Method	Install from the outside to the inside

Product Name: metal keypad (Can change the font on the button)

Product Description : Stainless steel keyboard, numeric keys and six function keys, compact layout of buttons, 0.5mm long button stroke, installation method from top to bottom, the whole thickness is: 6.5mm, using all stainless steel panel and laser engraved button design, mold matching Precise and accurate, the surface treatment is beautiful and generous.

`Installation:1)CAD:`

`2)Matrix Graph:`

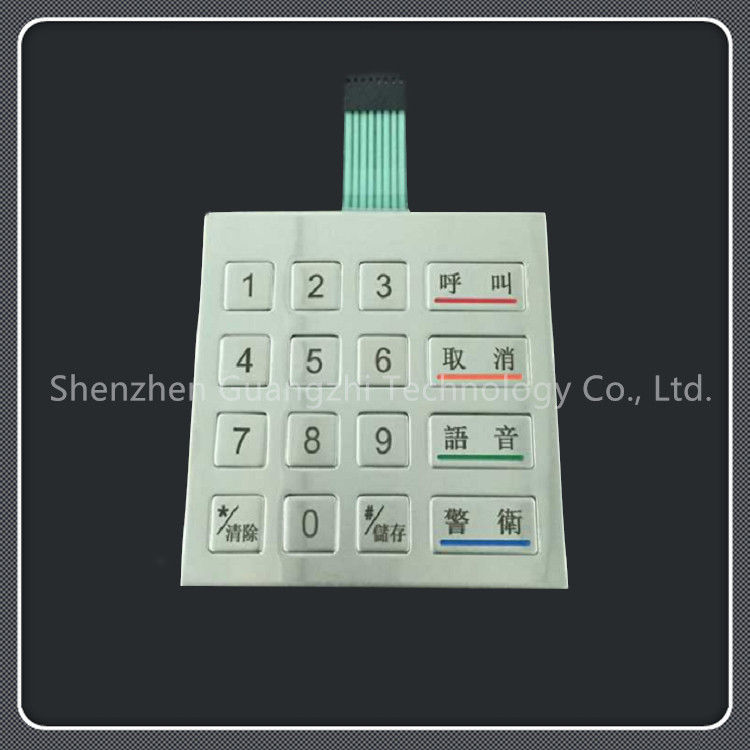

`3)Frontface effect of the product`

`4) Product Application:`

`Mainly used in various unsupervised or semi-regulated information terminals, such as Internet terminals, universities, shopping malls, hotels, banks, airports, stations and other public information kiosks, ticket vending machines, gas stations, bank tellers ( Automatic deposit/detail machine), public telephone, etc.`

`5) Mainly Features:`

`1. Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.`

`2. The keyboard after installation is beautiful and plug and play.`

`3. The metal keyboard surface button is very good for preventing smashing, not easy to bend and detach, so as to prevent the button from falling off and being damaged.`

`4. Customize any key surface in multiple languages to suit different countries and various custom styles.`

`5. Easy to install, PS2, USB, R232 interface is provided to connect the host for keyboard operation.`

`6) Mechanical Specifications:`

`1. Button: digital button and six function keys, imported printed brushed SUS304 stainless steel.`

`2. Button font: can be laser engraved, can be used to fill out the pattern and characters`

`3. The size of the button: 13.8mm * 13.8mm, 13.8 * 27.8mm`

`4. Button stroke: 0.5mm`

`5. Button life: Operate more than 2 million times / per button, the pot is made of imported gold plated material.`

`6. Button strength: 1.2N +/- 0.1N (contact force)`

`7. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick`

`7) Electric parameter:`

`1. Operating current: Direct current+5V/-5%`

`2 working current:20mA`

`3 Expected life-time:>2yer`

`4. Button switch technology: Matel Dome key`

`5. Interface Technology:USB,PS2,R232,8PIN`

`6. Operating System:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx`

`8) Environmental adaptation:`

`1. Operating Temperature:-20℃to+60℃`

`2. Storage Temperature:-30℃to+70℃`

`3. Relative Humidity: 30-90% without Condensation dew`

`4. Atmospheric Pressure:50-100Kpa`

Tag:

Place of Origin:	Shenzhen,China
Brand Name:	guangzhi
Certification:	CE、FCC、RoHS
Model Number:	GZ-B001023

Minimum Order Quantity:	1pcs
Price:	To be quoted
Packaging Details:	Individual product package size:23515050mm, Carton Size:482320275;
Delivery Time:	10-20 work days
Payment Terms:	T/T, Paypal
Supply Ability:	100000pcs
