| Place of Origin: | SHENZHEN CHINA |
|---|---|
| Brand Name: | szguangzhi |
| Certification: | CE、FCC、RoHS，IP67 |
| Model Number: | GZ-B009020-020 |
| Minimum Order Quantity: | 1pcs |
| Price: | To be quoted |
| Packaging Details: | Individual product package size:235*150*50mm, Carton Size:482*320*275; |
| Delivery Time: | 1-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000pcs |
| Application: | Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller | Product Name: | Keypad, Stainless Steel ATM Keyboard, Mini Usb Wired 19 Key Digital Numeric Keypad, ATM PINPAD, Custom Numeric Keypad |
|---|---|---|---|
| Interface: | USB | Waterproof Level: | IP67 |
| Key Travel: | 0.45mm | Whether Backlit: | YES |
| Support Customization: | YES | Number Of Keys: | 16 |
| High Light: | IP67 Stainless Steel Keyboard,USB Stainless Steel Keyboard,IP67 stainless steel keypad |
||
USB IP67 Stainless Steel Keyboard For Blind Spot Information Kiosk
Model: GZ-B009020-020
Parameters of the self-service vending machine keyboard
|
Working temperature |
-20℃to+60℃ |
|
Storage temperature |
-30℃to+70℃ |
|
Relative humidity |
30-90% |
|
Working voltage: |
DC +5V+/-5% |
|
Working current: |
130mA, standby current: 20mA
|

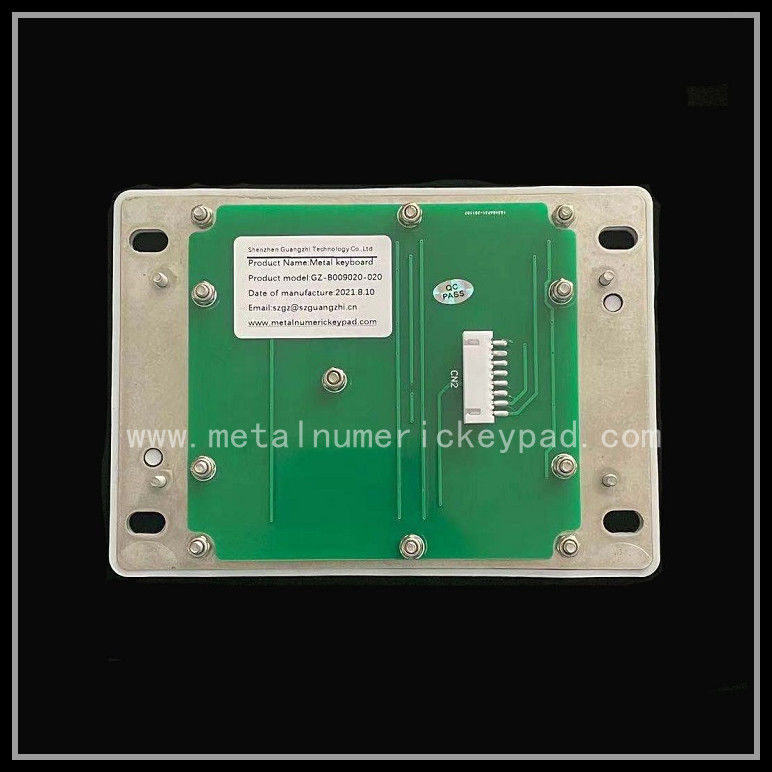

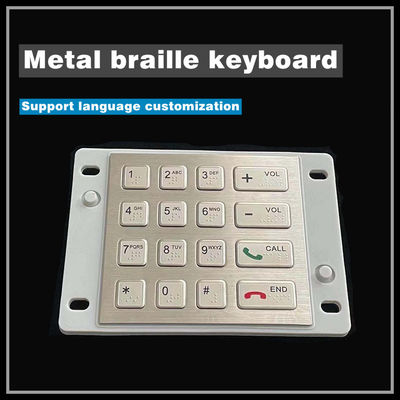

Product Image:
Application range:
◆ ATM, CDM
◆ Self-service equipment
● Self-service terminal
● Kiosk Terminal
● Telecom single machine
● Transfer machine
● Self-service payment machine
◆ Security access control keyboard
◆ Automatic monitoring, security equipment, industrial PC numerical control platform, medical testing equipment
Introduction to keyboard features:
(one)
◆ 16 keys, made of excellent stainless steel materials
◆ The stainless steel surface of the keyboard is specially treated to prevent the paint from falling off the keys*
◆ The keycap font is black, the function keys have colored icons, and the definition is high
◆ Keycap graphics and text are laser engraved or chemically etched, and the paint is processed with braille through a special process;
◆ Keycap graphics and text can be customized according to user requirements
◆ Keyboard keys can be defined according to customer requirements
◆ PS/2 or USB interface for choice
◆ Accept customer order (other language versions are available)
(two)
◆ Panel: using high-strength stainless steel wire drawing board
◆ Substrate: use excellent high-strength stainless steel plate or hardened aluminum plate
◆ Key life: 2 million times
◆Key stroke: 0.45mm
◆ Keystroke force: 3N
◆ Operating temperature: -40℃-65℃
software support:
◆ Encrypted keyboard provides driver software
◆ Provide professional supporting software
◆ Accept customer application development
Q&A:
Q1) Is your keyboard waterproof?
Answer: We do have a waterproof metal keyboard, the protection level is IP65-IP68.
Start asking us about your requirements, and we will recommend a suitable model for you.
Q2): Are you a manufacturer (factory)?
Answer: Yes. OEM/ODM services are also provided here. Welcome to share your thoughts with us. We are happy to provide you with the best solution.
Q3): What is your MOQ?
Answer: First, you can provide a sample for evaluation. For non-customized products, any quantity is welcome here. According to customized products, please contact us for further confirmation.
Q4): What is the delivery time?
Answer: Bulk orders: 2-20 days, depending on the order quantity. Sample: 1 day when in stock, 20 days for custom design.
